Camera - B-Pillar - LH - AP4 - Remove and Replace: Remove

WARNING: Whenever a camera has been moved out of its original position (for example, a camera or windshield replacement), camera calibration data must be cleared using the vehicle touchscreen: Controls > Service > Camera Calibration > Clear Calibration  .
  1. Remove the LH B-pillar applique. See APPLIQUE (B-PILLAR) - LH - REMOVE AND REPLACE

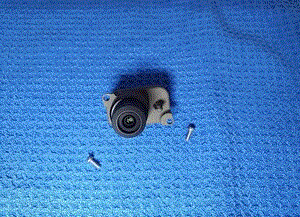

  2. Remove the bolts (x2) that attach the camera to the LH B-pillar, and then remove the camera.

    Tip:

    Use of the following tool(s) is recommended:

    • Torx T10 bit
    • Ratchet/torque wrench
      G00663147Courtesy of TESLA, INC.
      G00663072Courtesy of TESLA, INC.
