Grille - Fascia - Front - Remove And Replace: Remove

  1. Remove the front fascia. See Fascia - Front (Remove and Install) .

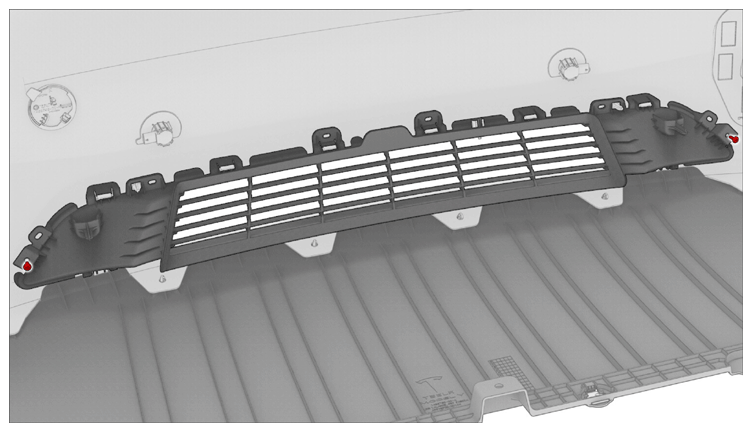

  2. Remove the screws (x2) that attach the grille to the front fascia.
    NOTE: Use of the following tool(s) is recommended:
    • Torx T25 socket
    • 4 in extension
    G14820225Courtesy of TESLA, INC.

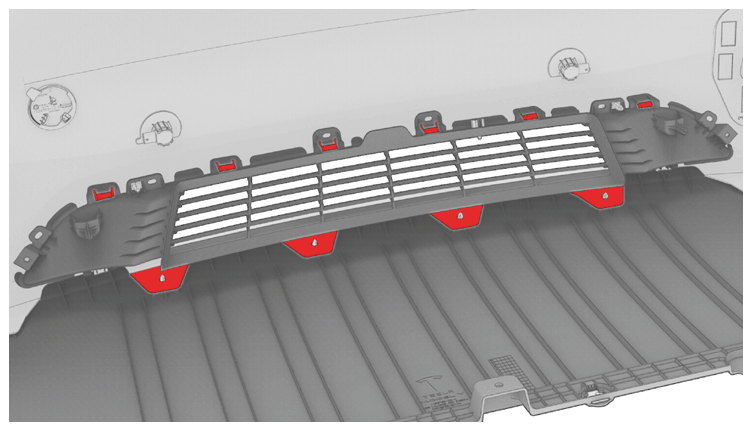

  3. Use a plastic trim tool to release the tabs (x10) that attach the grille to the front fascia.
    G14820226Courtesy of TESLA, INC.
  4. Remove the grille from the front fascia.
