Grille - Fascia - Front - Remove And Replace: Install

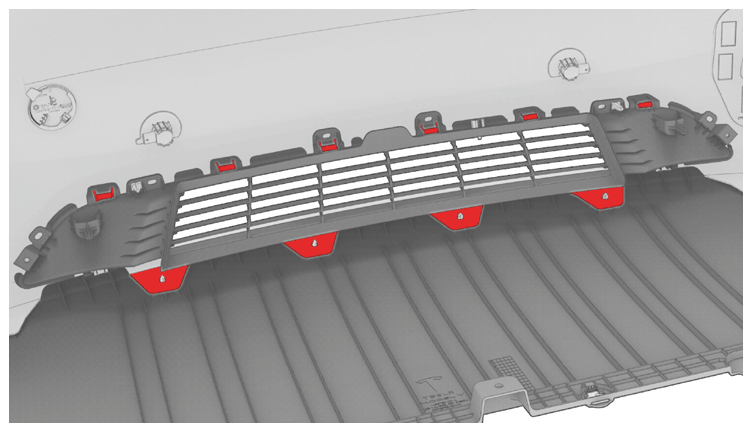

  1. Secure the tabs (x10) that attach the grille to the front fascia.
    G14820227Courtesy of TESLA, INC.

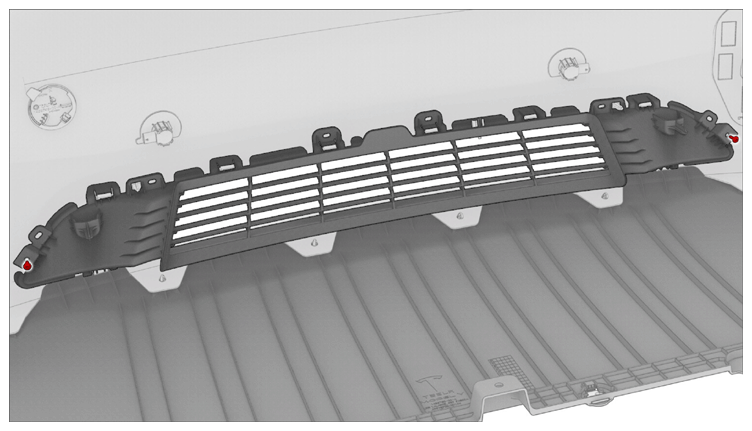

  2. Install the screws (x2) that attach the grille to the front fascia.

    3 N.m (2.2 ft-lbs)

    NOTE: Use of the following tool(s) is recommended:
    • Torx T25 socket
    • 4 in extension
    G14820228Courtesy of TESLA, INC.
  3. Install the front fascia. See Fascia - Front (Remove and Install) .
