Foam - Bumper Beam - Front - Remove And Replace: Install

  1. If the vehicle is equipped with pedestrian protection systems, install the pressure tube sensor on the new front bumper beam foam.

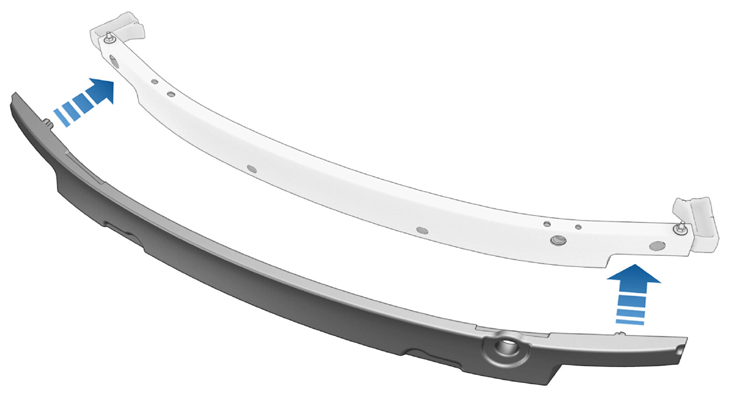

  2. Install the front bumper beam foam onto the front bumper beam.
    G14820223Courtesy of TESLA, INC.
  3. Install the front fascia. See Fascia - Front (Remove and Install) .
