Fascia - Rear - Upper - Remove And Replace: Remove

Remove the rear fascia. See Fascia - Rear (Remove and Install) .

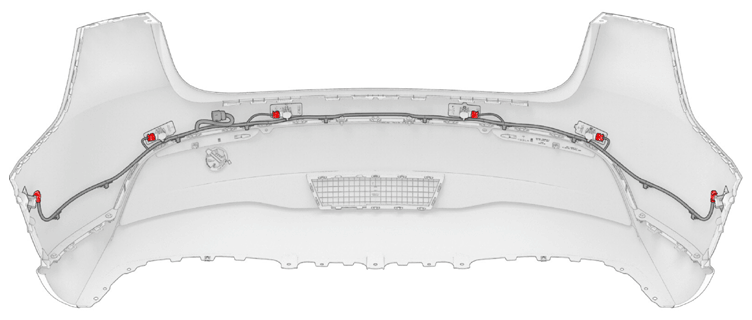

For HW3 vehicles, release the connector locks (x2), and then disconnect the rear fascia harness connectors (x6).
NOTE: Skip this step for HW4 vehicles.

NOTE: Do not push down on the red locking tab. Pull the red tab to release the connector lock.

Courtesy of TESLA, INC.

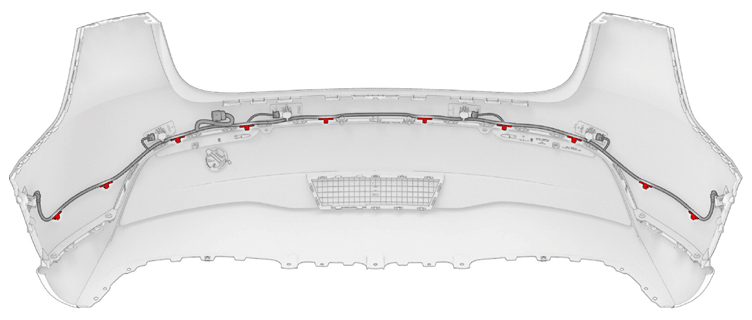

For HW3 vehicles, remove the clips that attach the rear fascia harness to the upper rear fascia, and then remove the harness from the assembly.
NOTE: Skip this step for HW4 vehicles.

Courtesy of TESLA, INC.

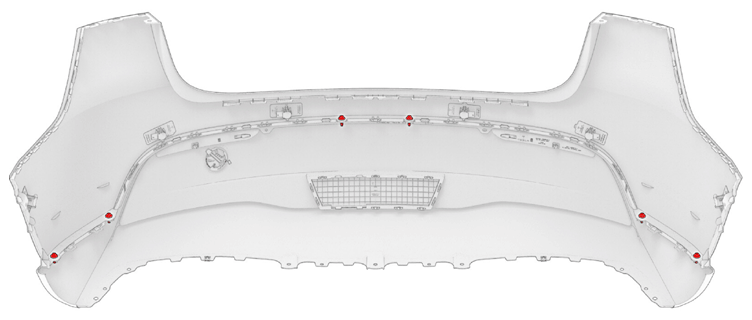

Remove the bolts (x6) that attach the lower rear fascia to the upper rear fascia.
3 N.m (2.2 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 4 in extension
Courtesy of TESLA, INC.

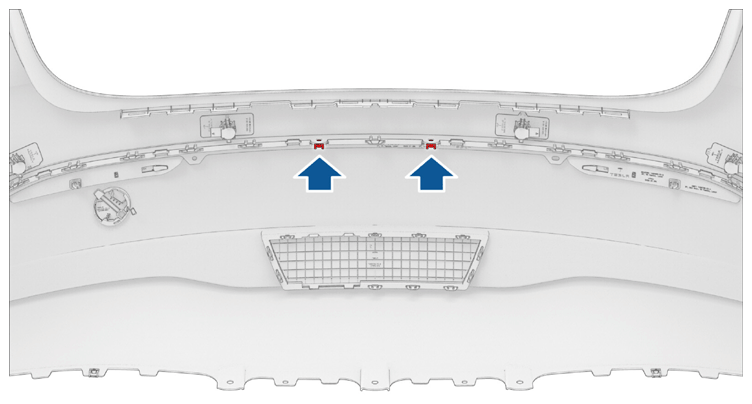

Remove the metal clips from the center of lower rear fascia.

Courtesy of TESLA, INC.

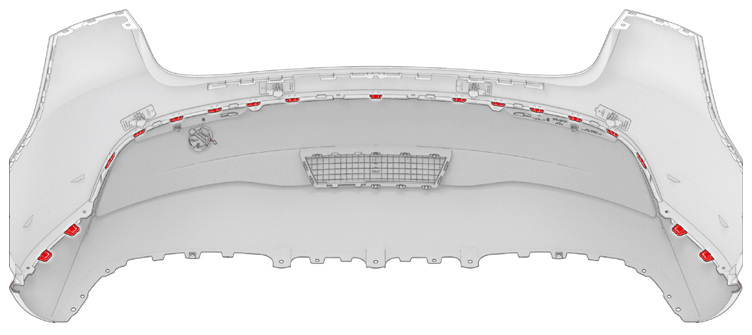

Release the tabs (x17) that attach the upper rear fascia to the lower rear fascia, and then separate the upper rear fascia from the lower rear fascia.

Courtesy of TESLA, INC.
Remove the rear parking distance sensors from the upper rear fascia for HW3 vehicles. See Sensor - Parking Distance - Inner - Rear (Remove and Replace) .
NOTE: Skip this step for HW4 vehicles.

Courtesy of TESLA, INC.
