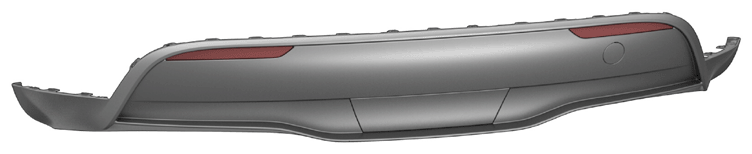

Fascia - Rear - Lower - Remove And Replace: Remove
- Remove the rear fascia. See Fascia - Rear (Remove and Install) .

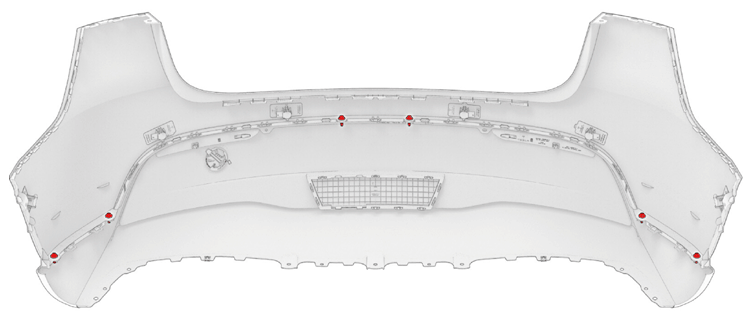

- Remove the bolts (x6) that attach the lower rear fascia to the upper rear fascia.
3 N.m (2.2 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 4 in extension

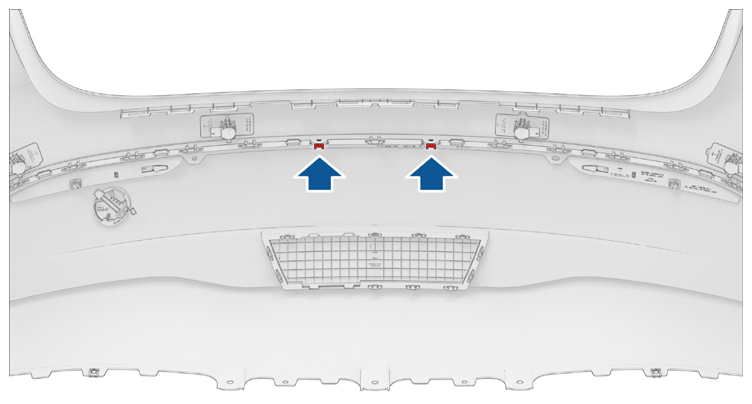

- Remove the metal clips from the center of lower rear fascia.

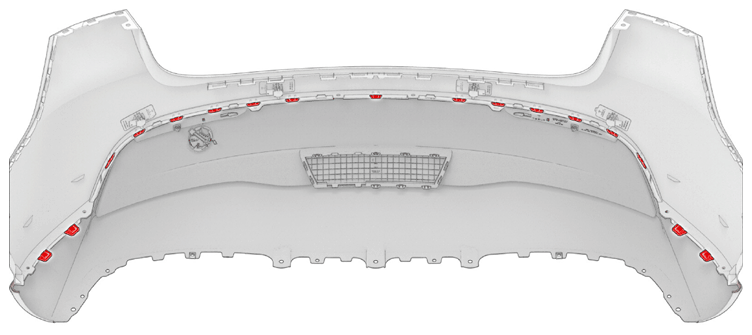

- Release the tabs (x17) that attach the upper rear fascia to the lower rear fascia, and then separate the upper rear fascia from the lower rear fascia.

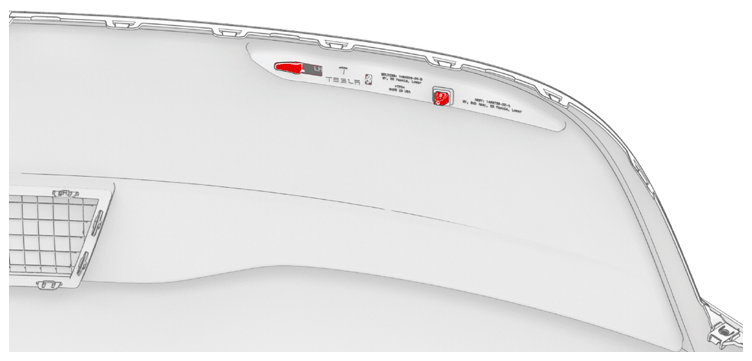

- Release the clip and tab that attach the LH reflector to the lower rear fascia, and then slide the reflector outward to remove it from the fascia. Repeat this step for the RH side reflector.NOTE: LH shown; RH similar

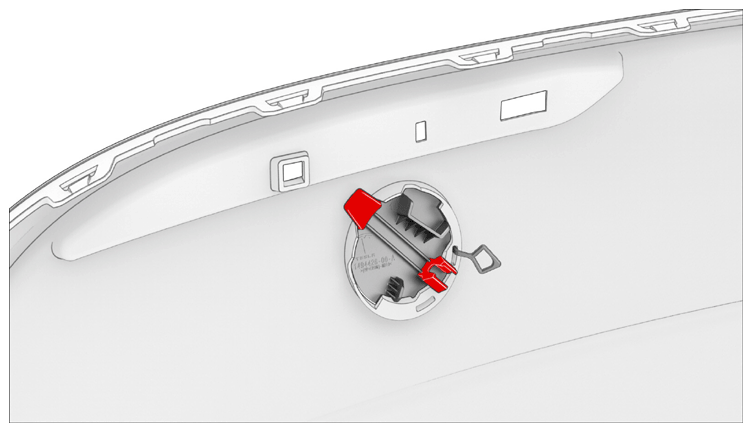

- Release the clips that attach the tow hook cover to the lower rear fascia, and then remove it from the fascia.

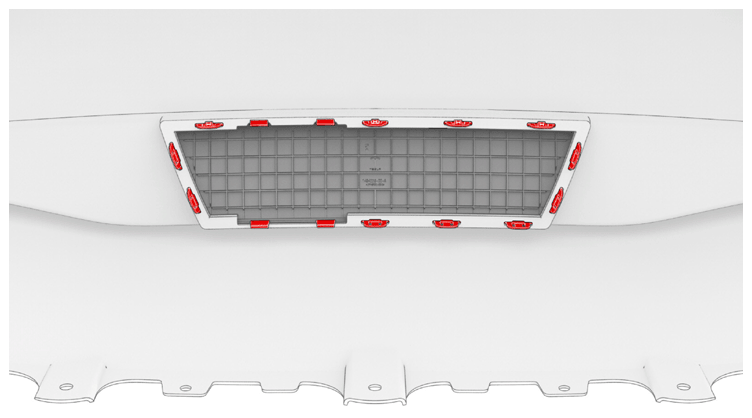

- Release the clips (x15) that attach the tow hitch cover to the lower rear fascia, and then remove the cover from the fascia.
