Bumper Beam - Rear - Remove And Replace: Remove
- Remove the rear center bracket. See Bracket - Rear - Center (Remove and Replace) .

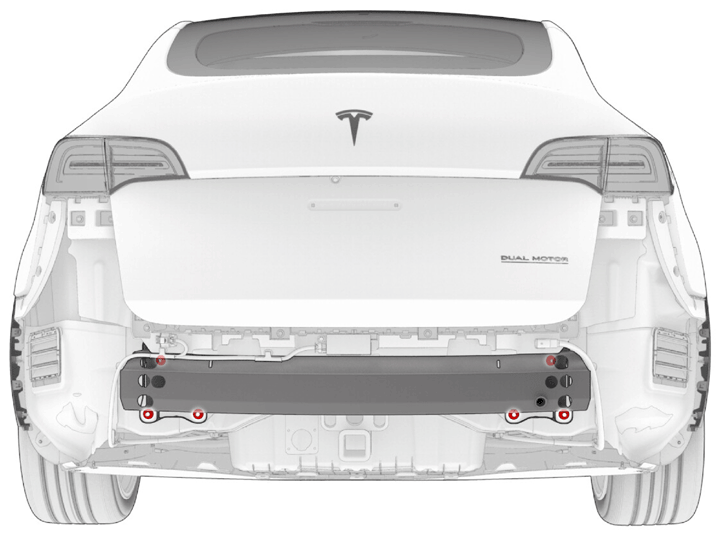

- Remove the nuts that attach the rear bumper beam to the body, and then remove the rear bumper beam from the vehicle.
Tip: Recommend assistance when performing this step.
NOTE: Use of the following tool(s) is recommended:- 15 mm deep socket
- 6 in extension
