Bumper Beam - Rear - Remove And Replace: Install

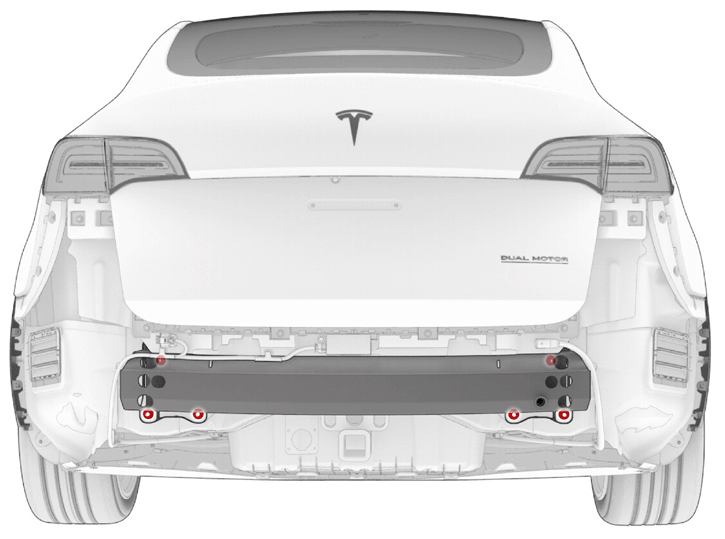

  1. Position the rear bumper beam on the body, and then install the nuts that attach the rear bumper beam to the body.

    62.5 N.m (46.1 ft-lbs)

    Tip: Recommend assistance when performing this step.

    NOTE: Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • 6 in extension
    G14820002Courtesy of TESLA, INC.
  2. Install the rear center bracket. See Bracket - Rear - Center (Remove and Replace) .
