Bracket - Rear Wing - LH - Remove And Replace: Remove

  1. Remove the rear fascia. See Fascia - Rear (Remove and Install) .
  2. Remove the clips that attach the LH rear wing bracket to the vehicle.

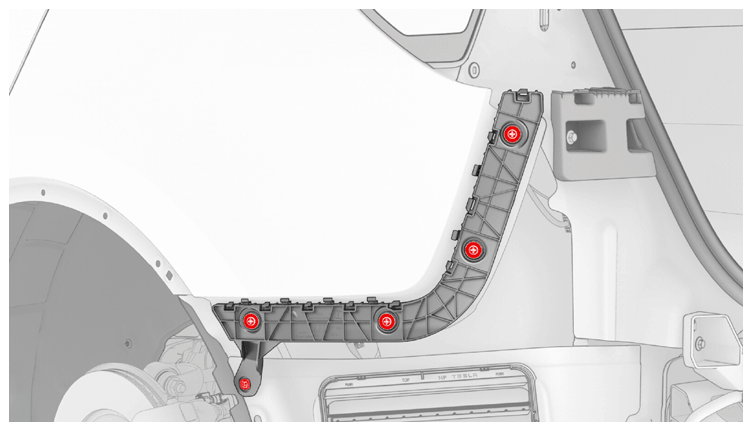

    G14819982Courtesy of TESLA, INC.

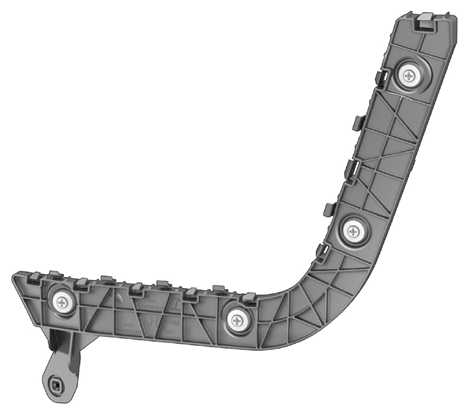

    G14819983Courtesy of TESLA, INC.
