Bracket - Rear - Center - Remove And Replace: Remove

Remove the rear fascia. See Fascia - Rear (Remove and Install) .

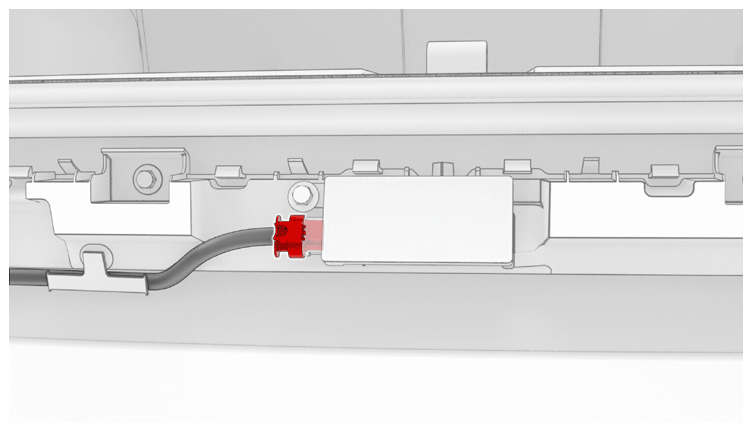

Disconnect the electrical wiring harness connector from the rear Bluetooth passive entry module.
CAUTION: Do not push down on the red tab. Instead, pull the red tab to disengage the lock and then pull again to release the connector.

Courtesy of TESLA, INC.

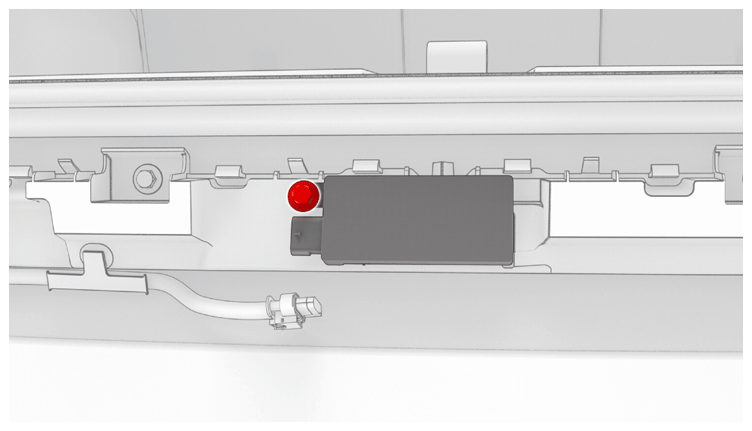

Remove the bolt and release the clip that attach the Bluetooth passive entry module to the body, and then remove the module from the bracket.
NOTE: When releasing the module from the bracket, rotate the left side away from the bracket to release the tab.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- 4 in extension
Courtesy of TESLA, INC.

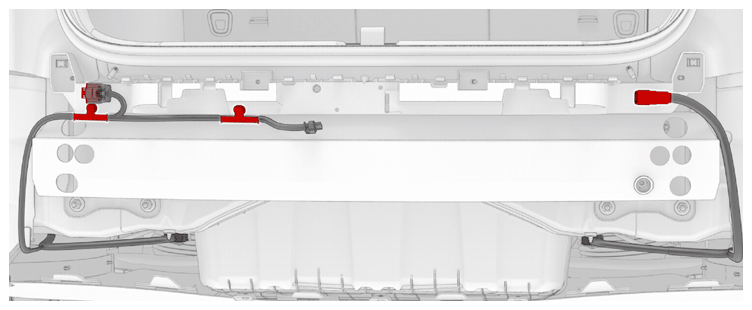

Release the clips that attach the electrical harness to the rear center bracket assembly.
NOTE: The end clip is hidden by the electrical connector.

Courtesy of TESLA, INC.
Remove the bolts that attach the rear center bracket to the body.
NOTE:
Use of the following tool(s) is recommended:
- 10 mm socket
- 4 in extension
Courtesy of TESLA, INC.

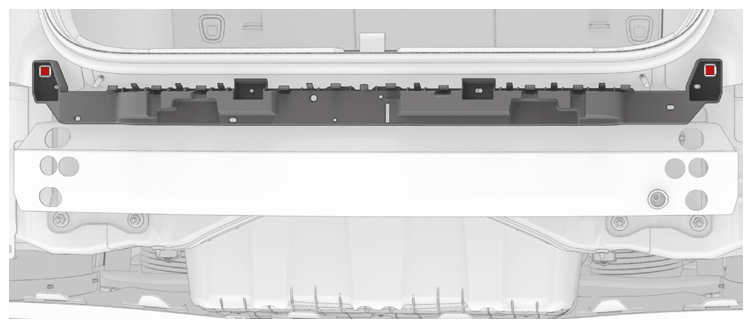

Release the tabs that attach each end of the rear center bracket to the body.
Tip: Assistance may be required to perform this step.

Courtesy of TESLA, INC.
Remove the rear center bracket from the vehicle.
