Bracket - Fascia Side To Fender - LH - Remove And Replace: Remove
- Open the LH front door and lower the LH front window.
- Raise and support the vehicle. See Raise Vehicle - 2 Post Lift .
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
- Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .

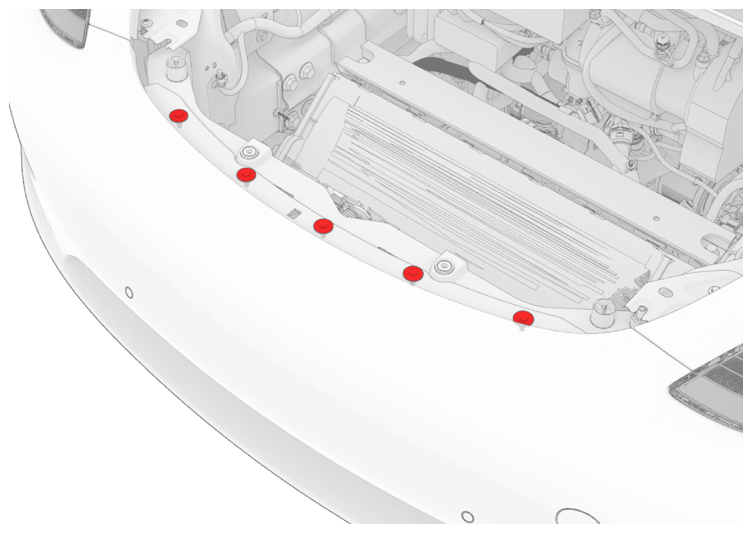

- Remove the bolts that attach the top of the front fascia to the vehicle.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 2 in extension
- Remove the LH front wheel. See Wheel (Remove and Install) .
- Remove the front aero shield panel. See Panel - Aero Shield - Front (Non-Structural Pack) - Remove And Replace .
- Remove the LH front fender garnish. See GARNISH - FENDER - FRONT - LH (REMOVE AND REPLACE) .

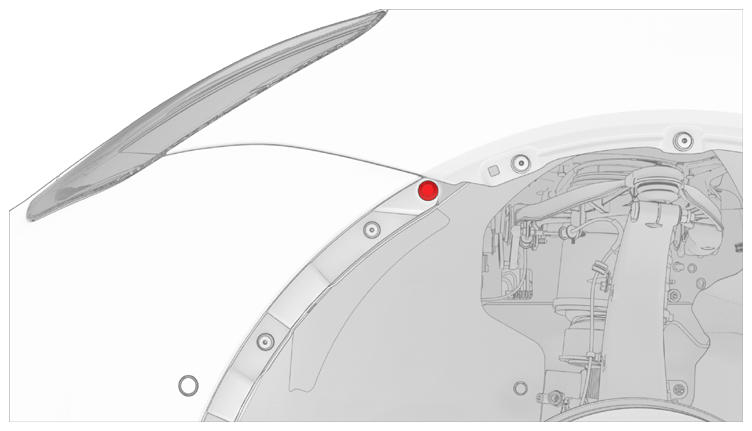

- Remove the bolt that attaches the LH corner of the front fascia to the fender.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

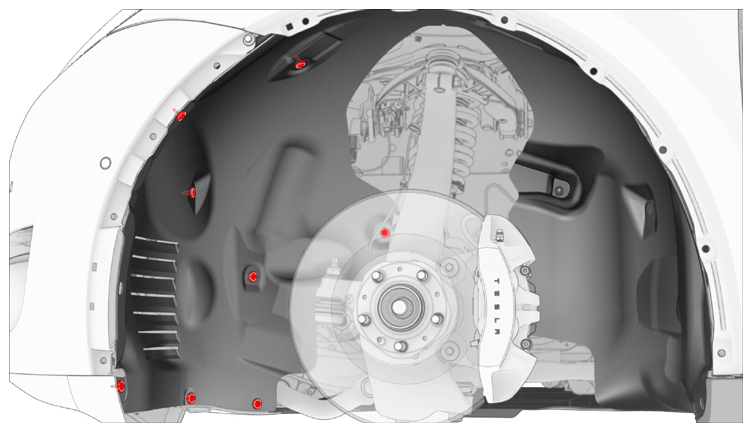

- Release the clips (x8) that attach the front portion of the LH wheel arch liner to the vehicle, and then move the liner aside to perform the following steps.
- Carefully pull aside the corner of the front fascia to gain access to the LH fascia side to fender bracket.

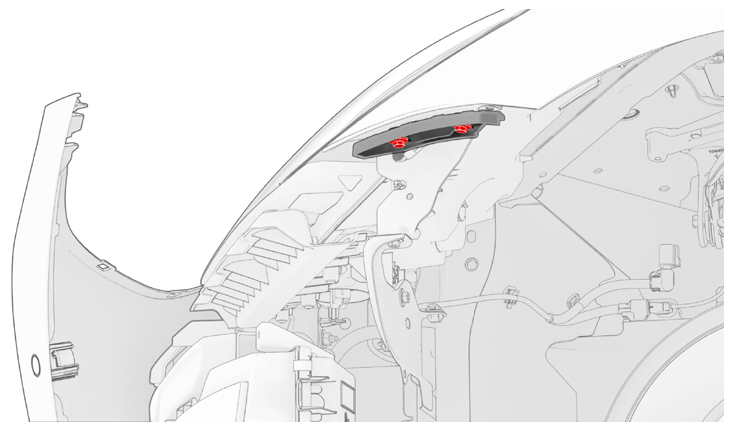

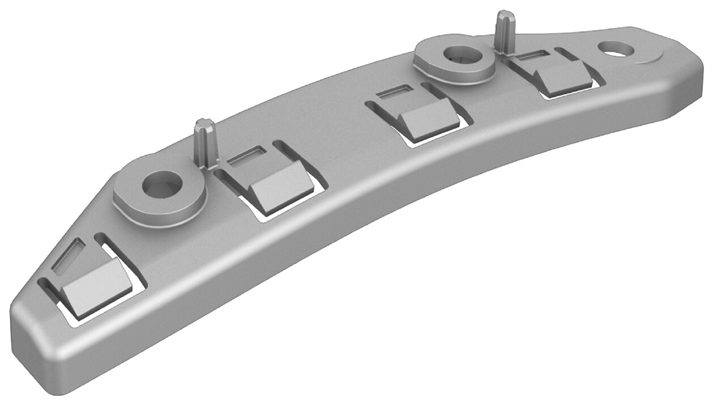

- Remove the bolts that attach the LH fascia side to fender bracket to the LH front fender, and then remove the bracket from the vehicle.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- 6 in extension
NOTE: LH shown, RH similar
