Bracket - Fascia Center To Fender - LH - Remove And Replace: Remove
- Remove the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .

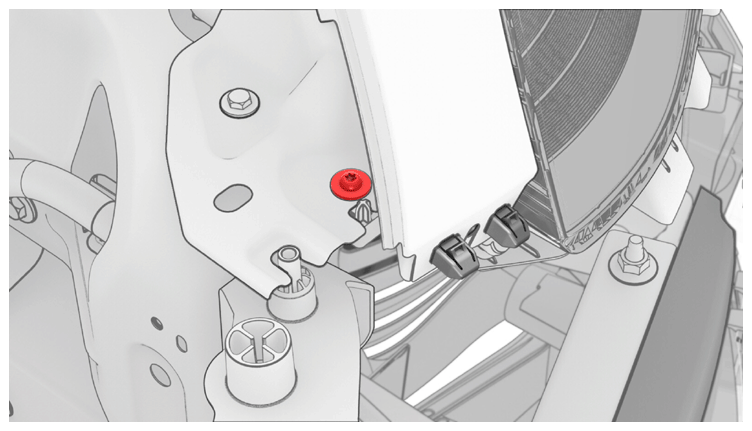

- Remove and discard the bolt that attaches the LH front fascia center bracket to the vehicle.
Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench

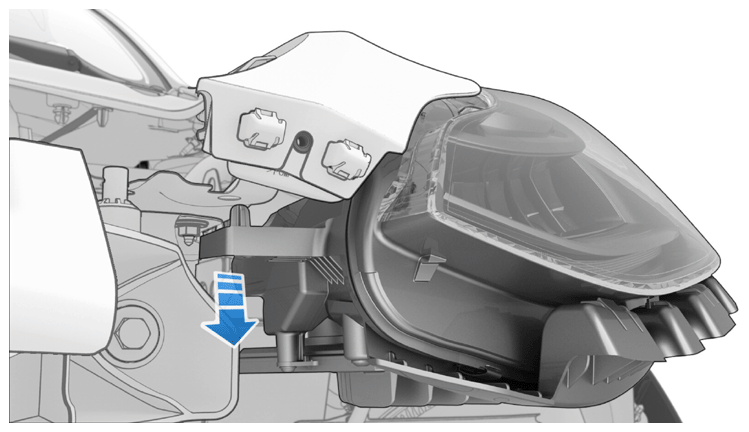

- Remove the bolt that attaches the LH headlight to the fender, and then lower the front headlight.
Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
- Flex head ratchet/flex head torque wrench
- 2 in extension

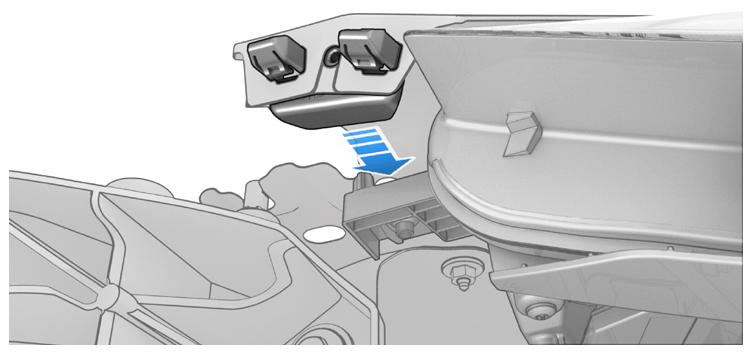

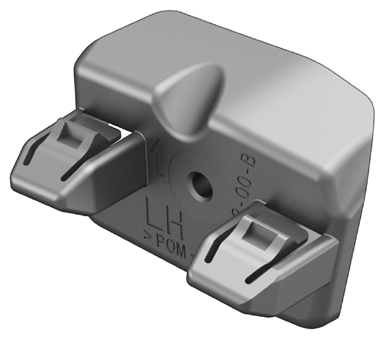

- Maneuver the LH front fascia center bracket rearward to remove it from the vehicle.
