Bracket - Fascia Center To Fender - LH - Remove And Replace: Install

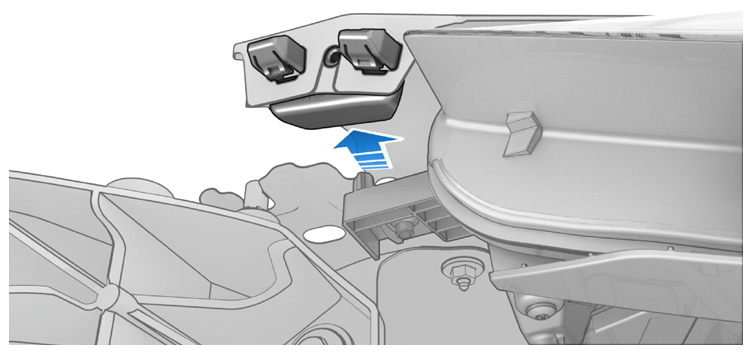

Install the LH front fascia center bracket.

Courtesy of TESLA, INC.

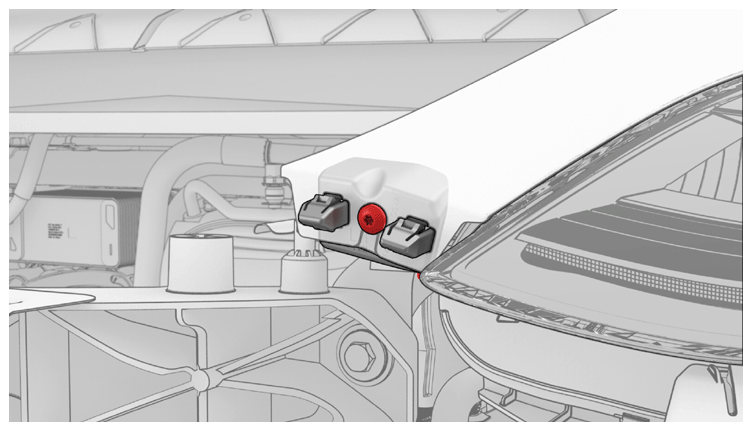

Position the headlamp, and then install the bolt that attaches the headlamp to the fender.
NOTE: 5.9 N.m (4.4 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- Torx T30 socket
- Flex head ratchet/flex head torque wrench
- 2 in extension
Courtesy of TESLA, INC.

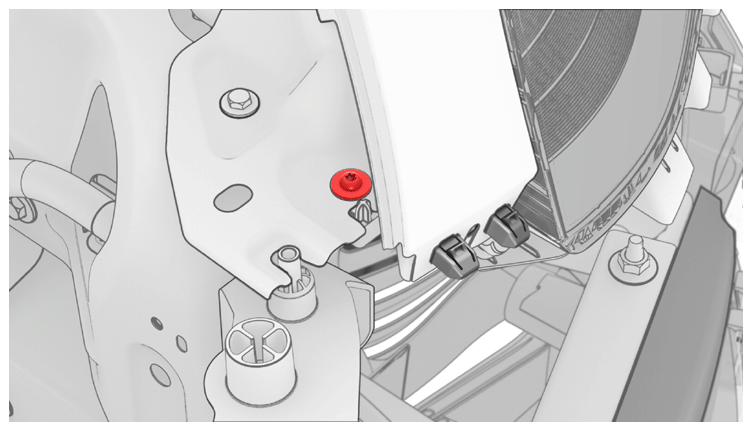

Install a new bolt that attaches the LH front fascia center bracket to the vehicle.
5 N.m (3.7 ft-lbs)

NOTE: Install a new black bolt (1551442-00-A).

Tip: Use of the following tool(s) is recommended:
- Torx T25 socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.
Install the front fascia. See FASCIA - FRONT (REMOVE AND INSTALL) .
