Brace - Shock Tower - Remove And Replace: Remove

  1. Remove the 12 V auxiliary battery. See 12 V/LV Battery (Remove and Replace) .
  2. Remove the compressor and the compressor assembly from the shock tower brace, and support the compressor assembly on the frunk reinforcement beam. See Bracket - Compressor (Remove and Replace) .
    NOTE: No need to remove the bracket from the compressor.
    G14820238Courtesy of TESLA, INC.
  3. Support the supermanifold with bungee cord.
    NOTE: Install bungee cord to RH hood strut bracket. Route bungee cord around accumulator housing and secure to the RH body side. Do not secure bungee cord around coolant pumps or plastic housing on supermanifold. Use a mirror as needed to visual check bungee cord around accumulator housing.
    G14820239Courtesy of TESLA, INC.
    G14820240Courtesy of TESLA, INC.
    G14820241Courtesy of TESLA, INC.
  4. Remove the bolts securing the supermanifold to the shock tower brace.
    NOTE: 2x bolts, 15 mm, 31 N.m, Recommend assistance, Rotate the Supermanifold counter clockwise under the shock tower support beam
    G14820242Courtesy of TESLA, INC.

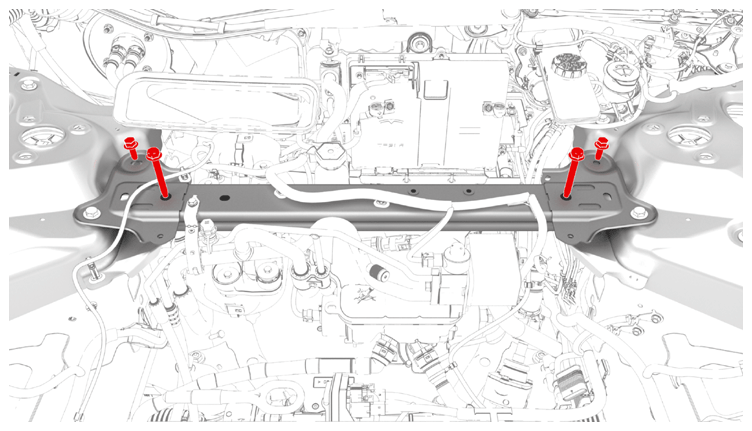

  5. Remove the LH and RH bolts that attach the shock tower brace to the body.

    55 N.m (40.6 ft-lbs)

    55 N.m (40.6 ft-lbs)

    G14820243Courtesy of TESLA, INC.
  6. Remove the LH and RH outer bolts that attach the shock tower brace to the body, and then remove the shock tower brace from the vehicle.

    62 N.m (45.7 ft-lbs)

    G14820244Courtesy of TESLA, INC.
  7. Remove the shock tower brace.
    G14820245Courtesy of TESLA, INC.
