Sensor - Parking Distance - Inner - Front - Remove And Replace: Remove

  1. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  2. Remove the underhood storage unit. See Underhood Storage Unit (Remove and Replace) .

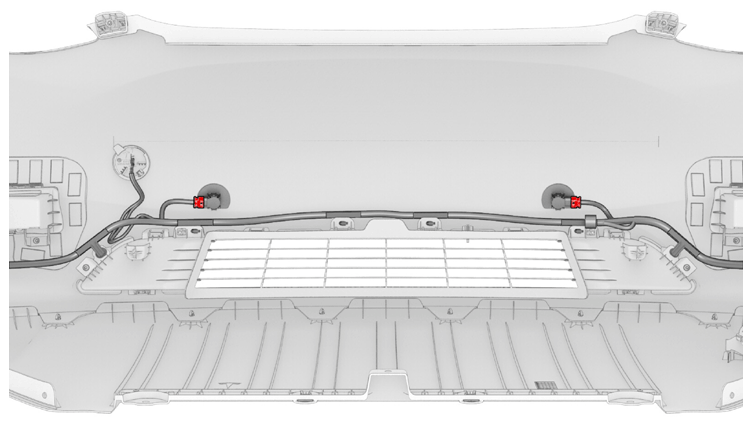

  3. Release the locking tab, and then disconnect the electrical harness from the front inner parking distance sensor.
    CAUTION: DO NOT push down on the red locking tab. Pull the tab away from the connector until the connector is unlocked, and then continue pulling to release the connector.
    NOTE: As pictured, there are 2 inner parking sensors on the front fascia. Disconnect the sensor that needs servicing, or both.
    G14833850Courtesy of TESLA, INC.

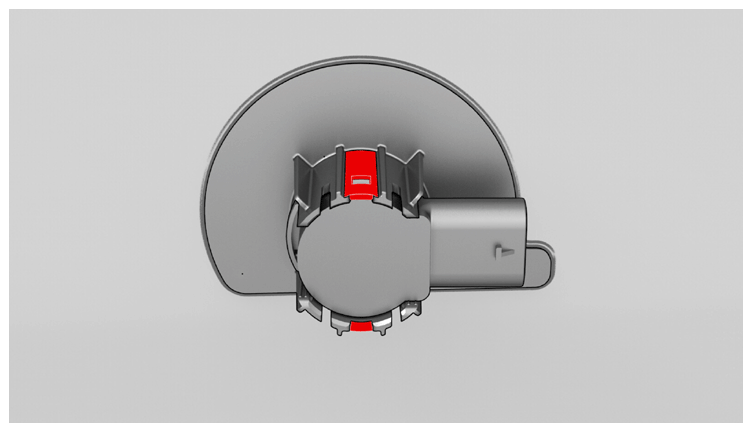

  4. Release the tabs (x2) that attach the front inner parking distance sensor to the front fascia, and then remove the sensor from the fascia.
    G14833851Courtesy of TESLA, INC.
