Switch - Steering Wheel - LH - Remove And Replace: Install

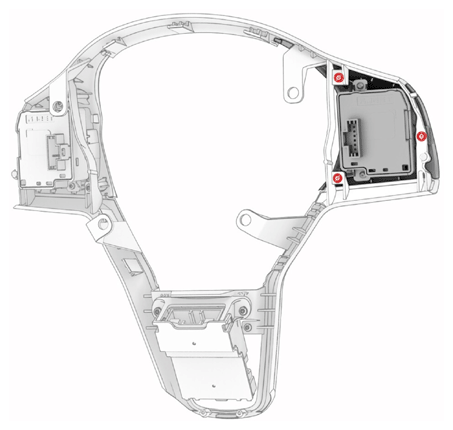

  1. Install the LH steering wheel switch into the bright surround, and then install the screws (x3) that attach the switch to the surround.

    0.9 N.m (8 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 bit
    G14833883Courtesy of TESLA, INC.

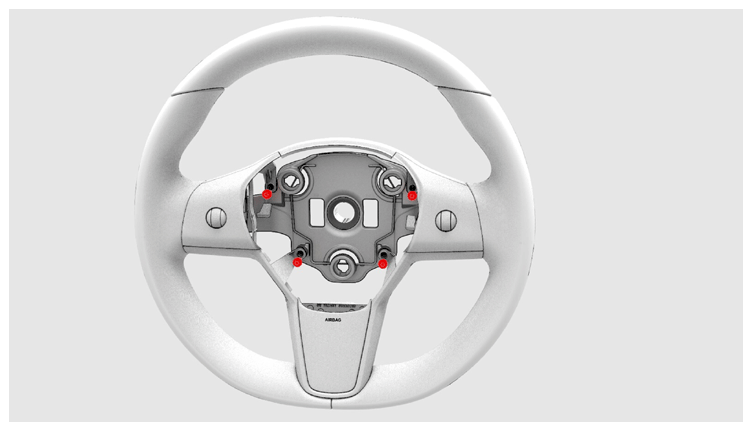

  2. Install the bright surround into the steering wheel, and then install the screws (x4) that attach the surround to the steering wheel.

    5.4 N.m (4.0 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 bit
    G14833884Courtesy of TESLA, INC.

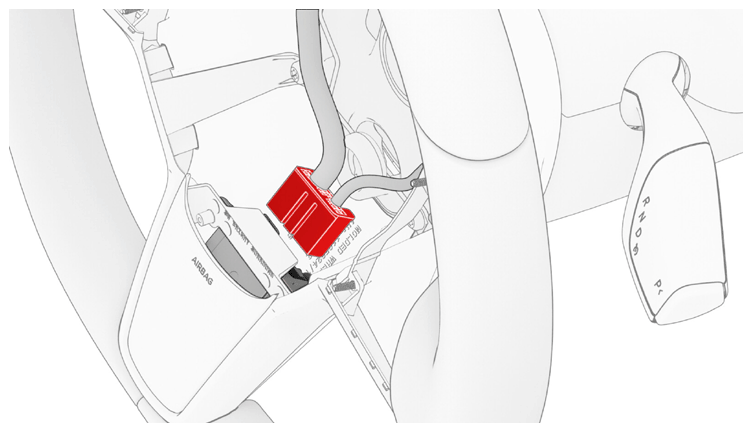

  3. Install the electrical harness into the steering wheel, and then connect the electrical harness to the lower connector.
    G14833885Courtesy of TESLA, INC.

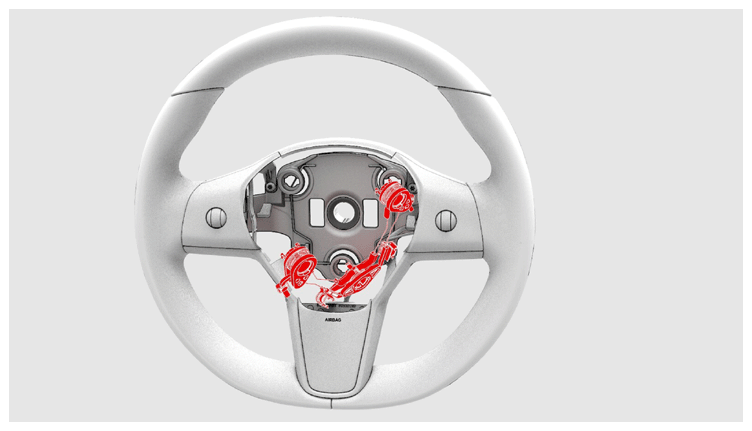

  4. Move the horn assembly to the center, and then fasten the clips that attach the horn assembly.
    G14833886Courtesy of TESLA, INC.

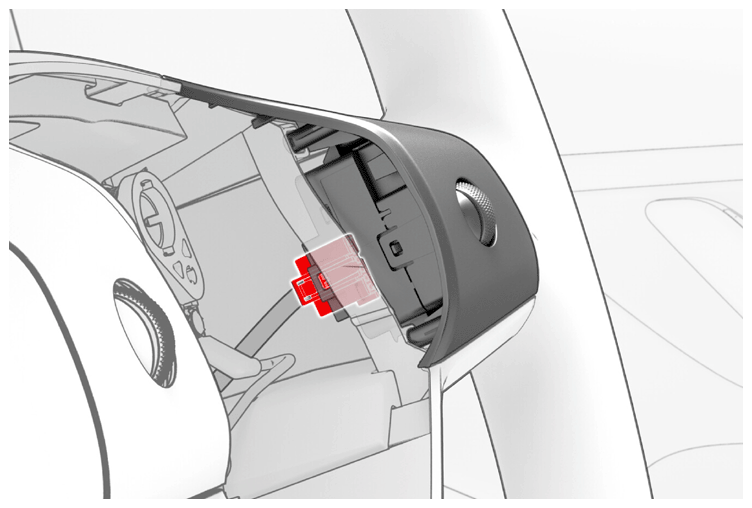

  5. Connect the electrical harness to the RH steering wheel switch connector.
    G14833887Courtesy of TESLA, INC.

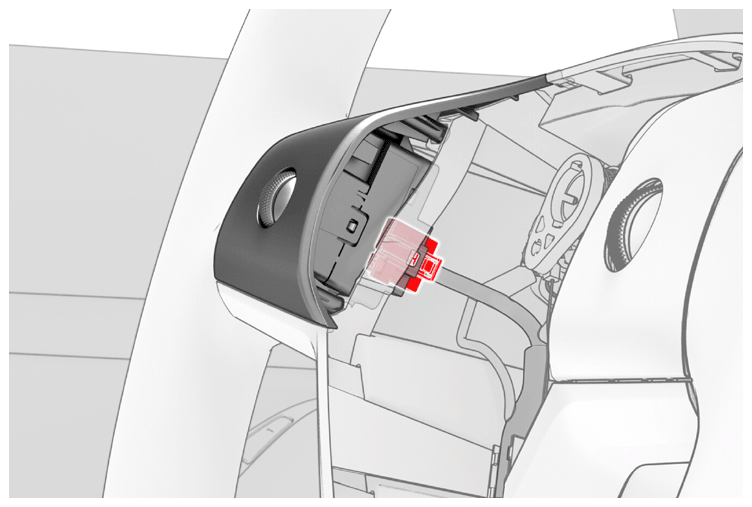

  6. Connect the electrical harness to the LH steering wheel switch connector.
    G14833888Courtesy of TESLA, INC.

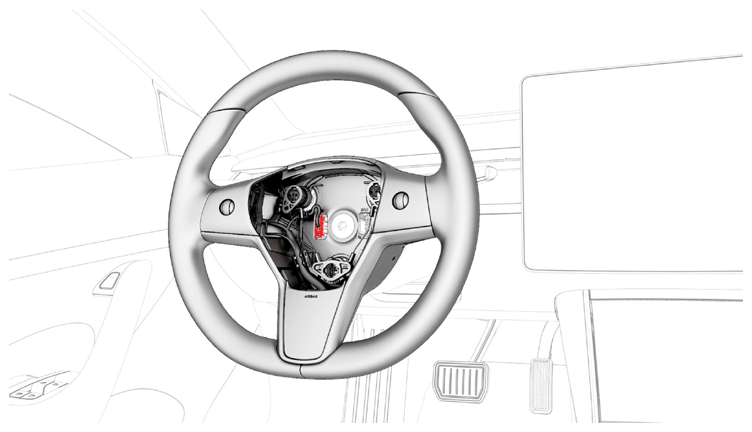

  7. Connect the steering wheel electrical harness to the connector.
    G14833889Courtesy of TESLA, INC.
  8. Install the driver airbag. See Airbag - Driver (Remove and Replace) .
