Reflector - Fascia - Rear - LH - Remove And Replace: Remove

  1. Remove the rear fascia assembly and place it on a padded surface. See FASCIA - REAR (REMOVE AND INSTALL) .
  2. Release the clips (x2) that attach the LH rear fascia reflector to the rear fascia assembly, and remove the reflector from the fascia.

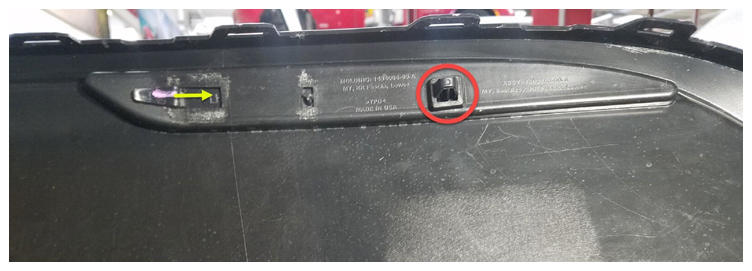

    G14833994Courtesy of TESLA, INC.

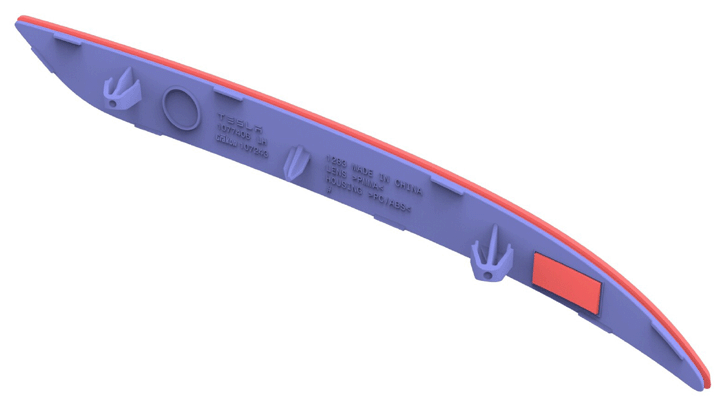

    G14833995Courtesy of TESLA, INC.
