Vent - Front - LH - Remove And Replace: Remove

  1. Remove the vent finisher. See FINISHER - VENT (REMOVE AND REPLACE) .

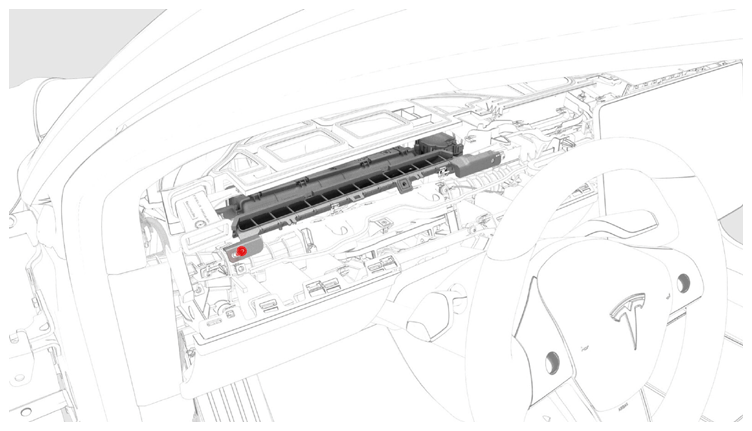

  2. Remove the screw that attaches the LH front vent, and then pull out the LH side of the LH front vent to release it from the instrument panel.

    2.3 N.m

    G14824119Courtesy of TESLA, INC.

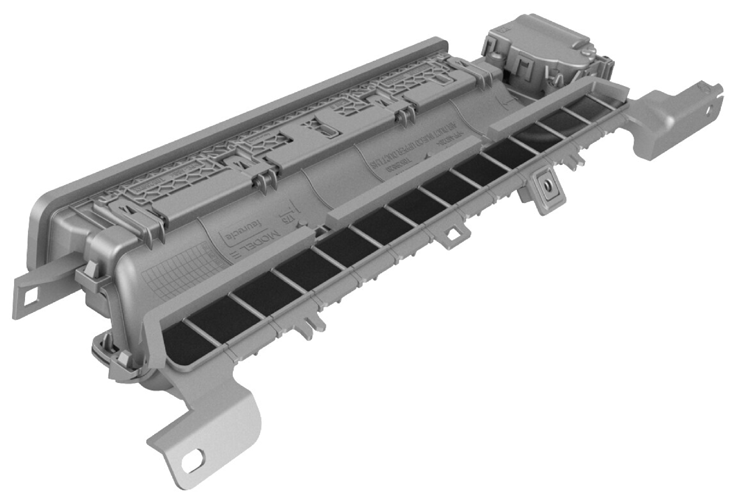

  3. Disconnect the electrical connector from the LH front vent, and then remove the LH front vent from the vehicle.
    G14824120Courtesy of TESLA, INC.
