Riser - Instrument Panel - Remove And Replace: Install

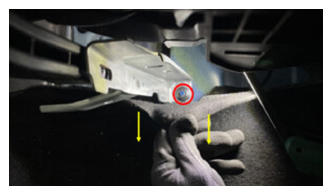

- Position the instrument panel riser into the vehicle, and then install the nut.
25 N.m
NOTE: Note the direction of the instrument panel riser during installation.Tip:
Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
- 6 in extension

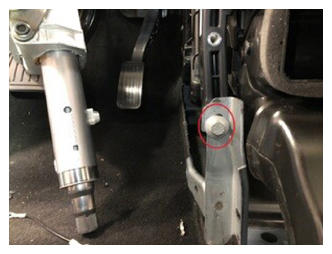

- Install the bolt that attaches the instrument panel riser to the cross car beam.
25 N.m
Tip:
Use of the following tool(s) is recommended:
- 13 mm socket
- Flex head ratchet/flex head torque wrench
- 3 in extension

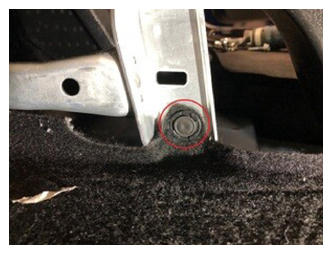

- Install the clip that attaches the carpet to the instrument panel riser.
- Install the LH center console side panel carpet. See Side Panel - Center Console - LH (Remove and Replace) .
- Install the LH front floormat.
- Move the driver seat to its original position.
- Raise the LH front window and close the LH front door.
