NVH Pad - Instrument Panel - Upper - Remove And Replace: Remove

  1. Remove the instrument panel carrier from the cross car beam. See IP CARRIER (REMOVE AND INSTALL) .

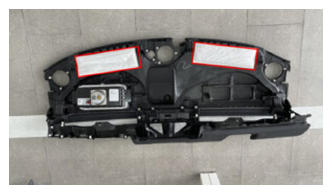

  2. Peel the instrument panel NVH pad from the instrument panel carrier.
    G14824116Courtesy of TESLA, INC.
  3. Use IPA wipes to remove any remaining adhesive from the instrument panel carrier.
