NVH Pad - Glove Box - Remove And Replace: Remove

  1. Open all doors and fully lower all windows.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Disconnect 12V power. See 12V/LV Power (Disconnect and Connect) .
  4. Remove the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  5. Remove the LH and RH air wave bezel caps. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  6. Remove the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  7. Remove the front passenger knee airbag. See Airbag - Knee - Front Passenger (Remove and Replace) .
  8. Remove the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (REMOVE AND REPLACE) .

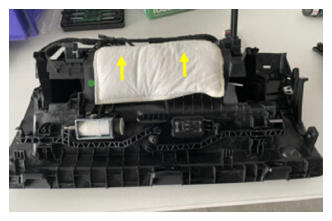

  9. Peel the NVH pad from the glove box.
    G14824113Courtesy of TESLA, INC.
  10. Use IPA wipes to remove remaining adhesive residue from the glove box, and then allow one minute for the IPA to dry.
