NVH Pad - Glove Box - Remove And Replace: Install

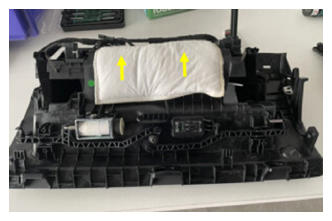

  1. Install a new NVH pad onto the glove box assembly.
    G14824114Courtesy of TESLA, INC.
  2. Install the glove box. See GLOVE BOX - WITH KNEE AIRBAGS (REMOVE AND REPLACE) .
  3. Install the front passenger knee airbag. See Airbag - Knee - Front Passenger (Remove and Replace) .
  4. Install the main instrument panel decor trim. See DECOR TRIM - INSTRUMENT PANEL - MAIN (REMOVE AND REPLACE) .
  5. Install the LH and RH air wave bezel caps. See END CAP - AIR WAVE - LH (REMOVE AND REPLACE) .
  6. Install the LH and RH instrument panel end caps. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  7. Connect 12V power. See 12V/LV Power (Disconnect and Connect) .
  8. Install the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  9. Close all doors and raise all windows.
