IP Carrier - Remove And Replace: Remove

  1. Remove the IP carrier. See IP CARRIER (REMOVE AND INSTALL) .
  2. Release tabs securing passenger air bag to IP carrier.
    NOTE: 6x tabs, Release windshield facing tabs

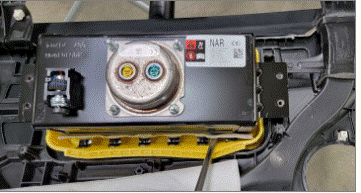

    G00642505Courtesy of TESLA, INC.

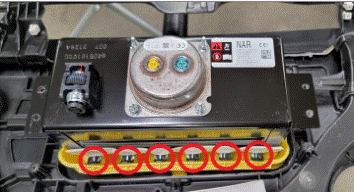

    G00642506Courtesy of TESLA, INC.
  3. Remove passenger air bag from IP carrier
    NOTE: 6x tabs, Rotate air bag up to release interior facing tabs

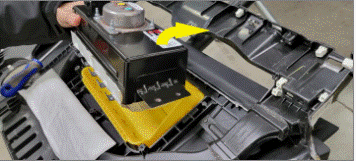

    G00642507Courtesy of TESLA, INC.

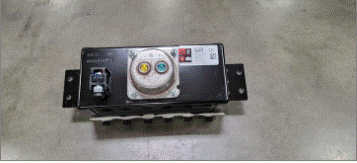

    G00642508Courtesy of TESLA, INC.
  4. Remove LH window defroster duct from IP carrier
    NOTE: 1x bolt, T20, 2.3 Nm

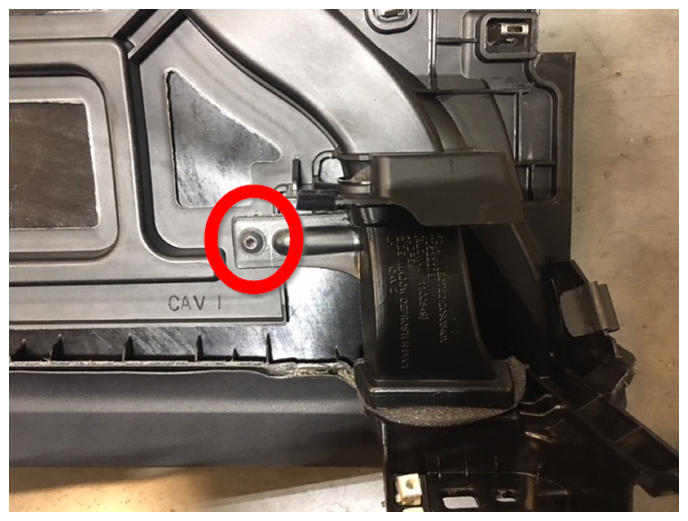

    G14824092Courtesy of TESLA, INC.

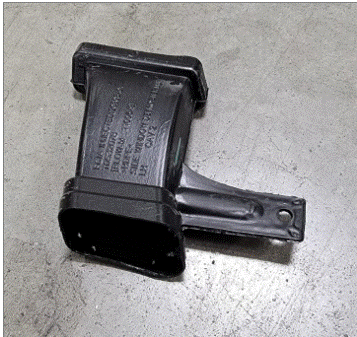

    G00642509Courtesy of TESLA, INC.
  5. Remove RH window defroster duct from IP carrier
    NOTE: 1x bolt, T20, 2.3 Nm

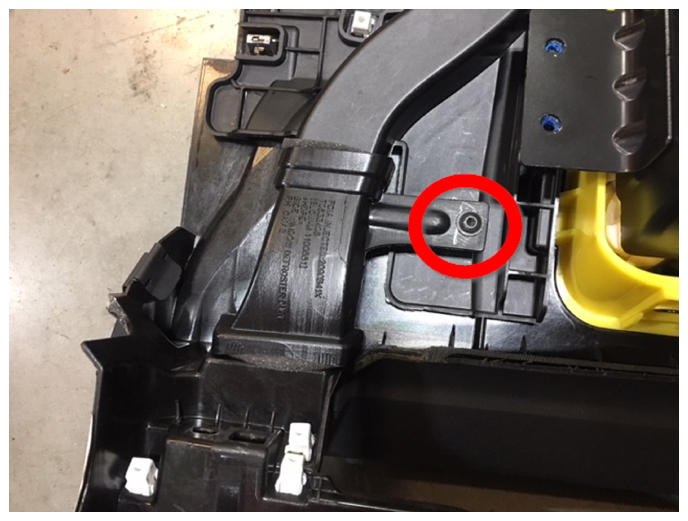

    G14824093Courtesy of TESLA, INC.

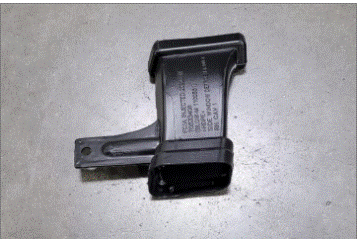

    G00642510Courtesy of TESLA, INC.
  6. Remove RH defrost cover from IP carrier
    NOTE: 5x tabs

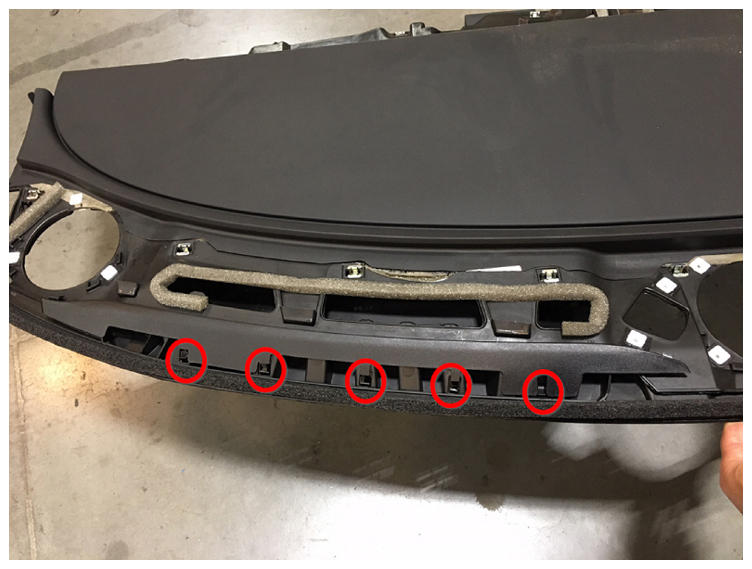

    G14824096Courtesy of TESLA, INC.

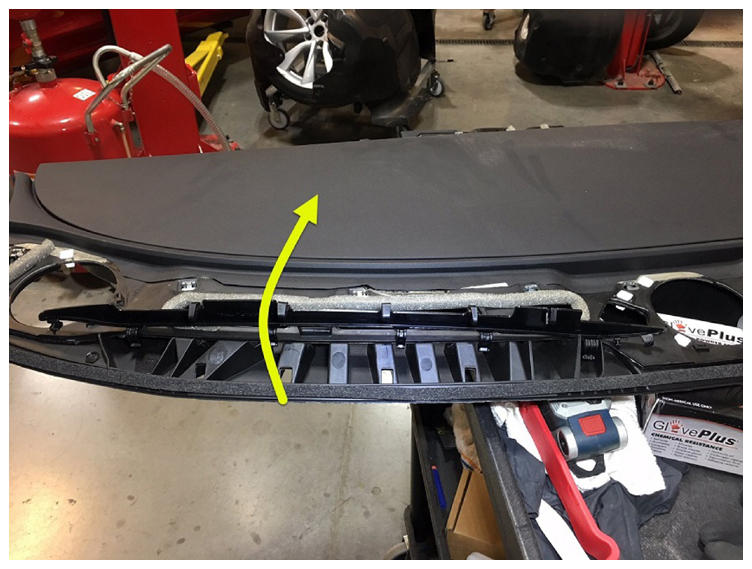

    G14824097Courtesy of TESLA, INC.
  7. Remove LH defrost cover from IP carrier
    NOTE:

    4x tabs

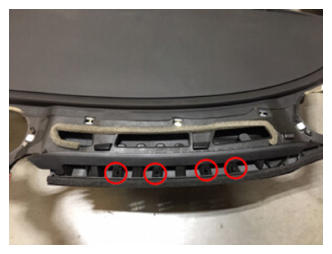

    G14824094Courtesy of TESLA, INC.

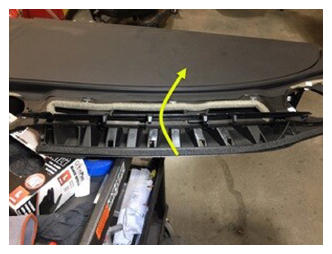

    G14824095Courtesy of TESLA, INC.
