IP Carrier - Remove And Replace: Install

  1. Install LH defrost cover to IP carrier
    NOTE:

    4x tabs

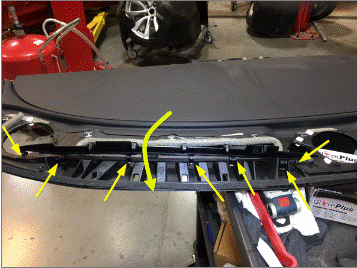

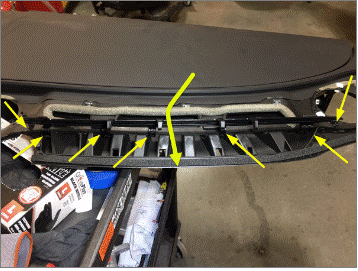

    G00642511Courtesy of TESLA, INC.
  2. Install RH defrost cover to IP carrier.
    NOTE:

    5x tabs

    G00642512Courtesy of TESLA, INC.
  3. Install RH window defroster duct to IP carrier
    G14824093Courtesy of TESLA, INC.
    G00642510Courtesy of TESLA, INC.
  4. Install LH window defroster duct to IP carrier
    NOTE: Note 1x bolt, T20, 2.3 Nm
    G14824092Courtesy of TESLA, INC.
    G00642509Courtesy of TESLA, INC.
  5. Install passenger air bag onto IP carrier
    NOTE: 6x tabs, Secure interior facing tabs onto IP carrier then rotate air bag down
    G00642508Courtesy of TESLA, INC.
    G00642507Courtesy of TESLA, INC.
  6. Secure tabs securing passenger air bag to IP carrier
    NOTE: 6x tabs, Push air bag evenly down and verify windshield facing tabs are properly secured

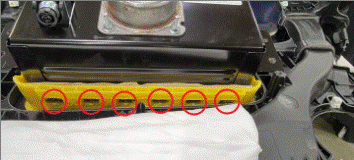

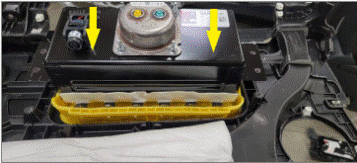

    G00642513Courtesy of TESLA, INC.
    G00642514Courtesy of TESLA, INC.
  7. Install the IP carrier. See IP CARRIER (REMOVE AND INSTALL) .
