Gap Hider - Steering Column - Lower - Remove And Replace: Remove

  1. Open the LH front door and fully lower the LH front window.
  2. Remove the rear underhood storage unit. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Disconnect 12V power. See 12V/LV Power (Disconnect and Connect) .
  4. Remove the driver airbag. See Airbag - Driver (Remove and Replace) .
  5. Remove the steering wheel. See STEERING WHEEL (REMOVE AND INSTALL) .
  6. Remove the steering column upper shroud. See Shroud - Upper - Steering Column (Remove and Replace)
  7. Remove the steering column lower shroud.
  8. Remove the LH footwell cover. See COVER - FOOTWELL - DRIVER (REMOVE AND REPLACE) .
  9. Remove the driver knee airbag. See Airbag - Knee - Driver (Remove and Install) .
  10. Release the clips that attach the lower steering column gap hider from the instrument panel sub assembly.
    G14824040Courtesy of TESLA, INC.

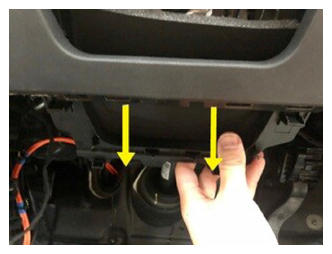

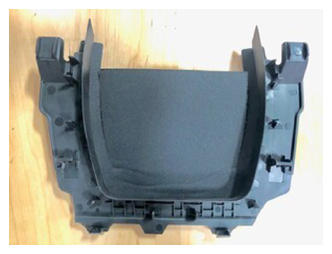

  11. Remove the lower steering column gap hider from the vehicle.
    G14824041Courtesy of TESLA, INC.
    G14824042Courtesy of TESLA, INC.
