End Cap - Instrument Panel - LH - Remove And Replace: Remove

  1. Release the clips that attach the end cap.
    WARNING: Wear cut-resistant gloves when performing this step to avoid personal injury.
  2. Remove the end cap from the vehicle.

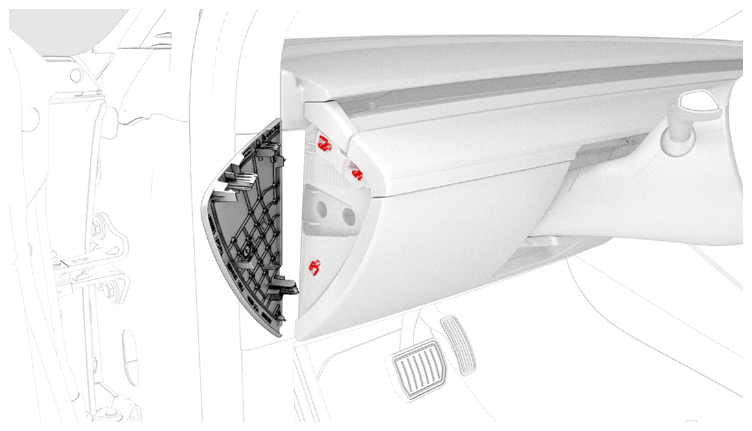

    G14824033Courtesy of TESLA, INC.

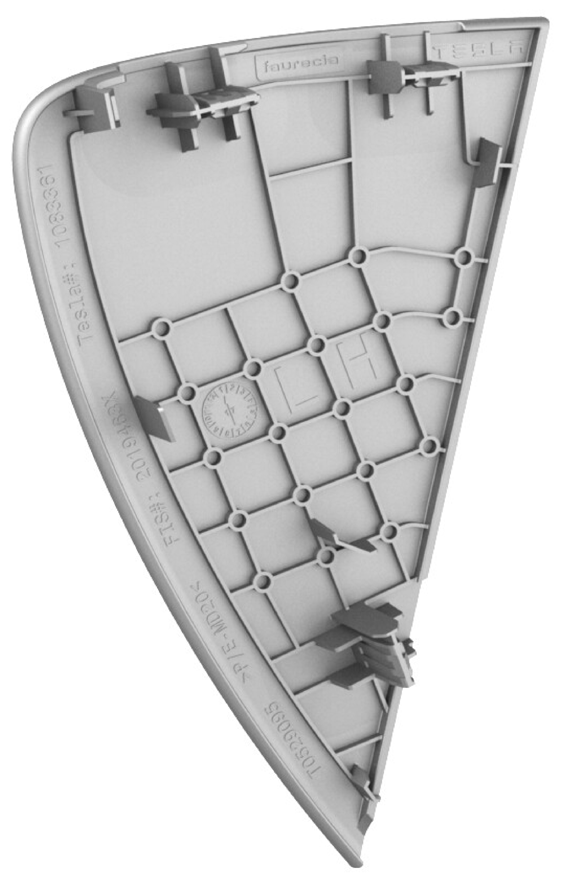

    G14824034Courtesy of TESLA, INC.
