End Cap - Air Wave - LH - Remove And Replace: Remove

  1. Remove the LH instrument panel end cap. See END CAP - INSTRUMENT PANEL - LH (REMOVE AND REPLACE) .
  2. Release the clips that attach the LH air wave end cap to the main instrument panel decor trim, and then remove the cap from the vehicle.

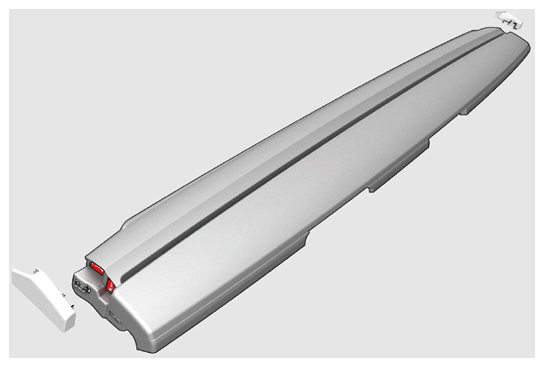

    G14824030Courtesy of TESLA, INC.

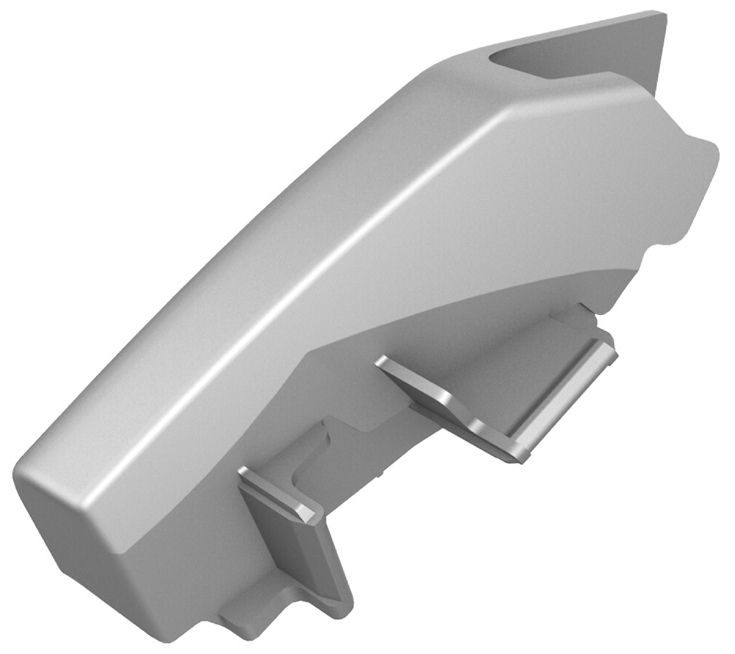

    G14824031Courtesy of TESLA, INC.
