Defrost Cover - Instrument Panel - LH - Remove And Replace: Remove

  1. Remove the IP carrier from the cross car beam. See IP CARRIER (REMOVE AND INSTALL) .
  2. Release the tabs that attach the LH defrost cover to the IP carrier, and then remove the cover from the assembly.

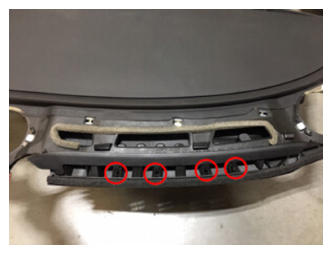

    G14824025Courtesy of TESLA, INC.

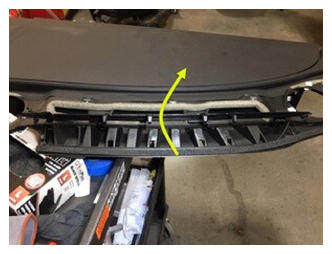

    G14824026Courtesy of TESLA, INC.
