Defrost Cover - Instrument Panel - LH - Remove And Replace: Install

  1. Install the LH instrument panel defrost cover onto the IP carrier.

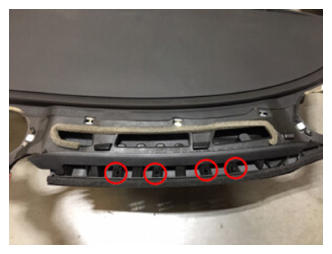

    G14824027Courtesy of TESLA, INC.

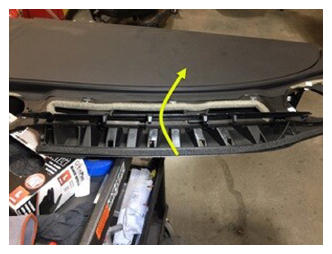

    G14824028Courtesy of TESLA, INC.
  2. Install the IP carrier into the cross car beam. See IP CARRIER (REMOVE AND INSTALL) .
