Cover - Footwell - Driver - Remove And Replace: Remove

Release the clips and remove the screw that attach the driver footwell cover to the vehicle.
2.5 N.m

Tip:

Use of the following tool(s) is recommended:
- Torx T20 socket
- 1/4 in std ratchet
- 1/4 in torque wrench (installation only)
- 4 in extension

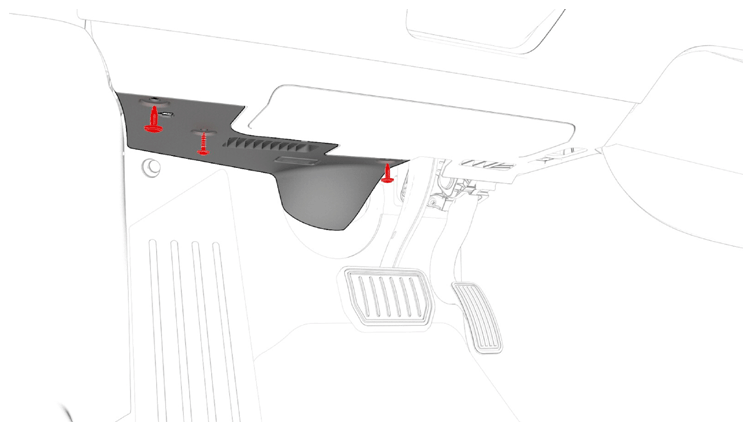

Figure 1. Left-Hand Drive (LHD)

Courtesy of TESLA, INC.

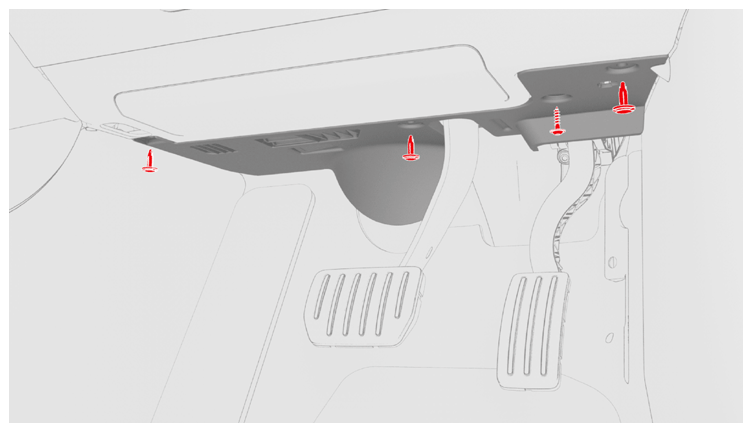

Figure 2. Right-Hand Drive (RHD)

Courtesy of TESLA, INC.
Disconnect the electrical connector from the puddle light, and then disconnect the diagnostic cable from the driver footwell cover.

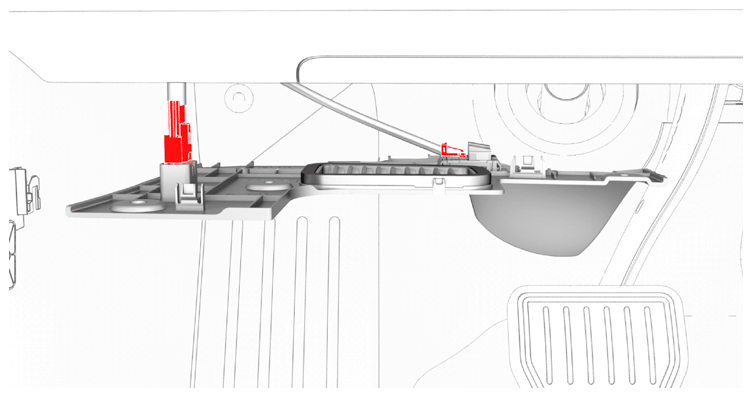

Figure 3. LHD shown, RHD similar

Courtesy of TESLA, INC.

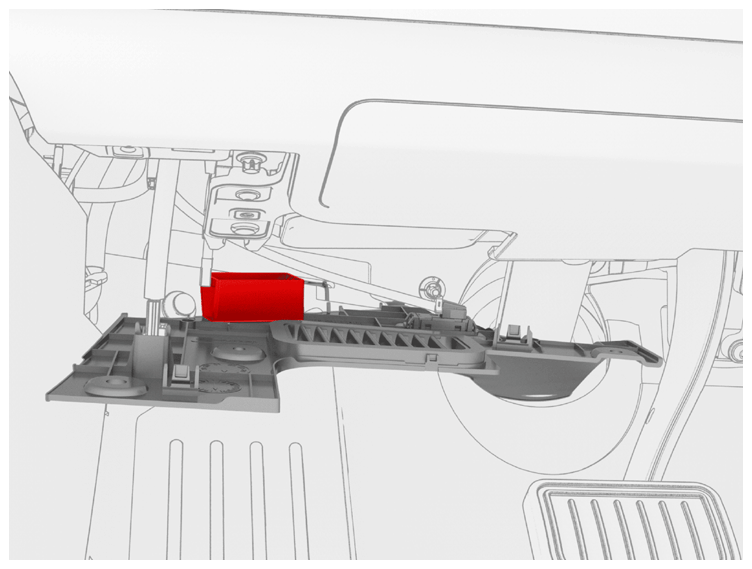

APAC vehicles only: Disconnect the OBD-II connector from the driver footwell cover.

Courtesy of TESLA, INC.

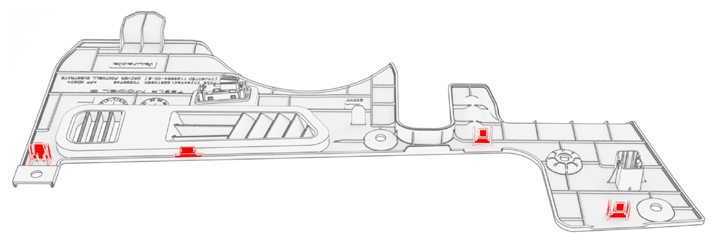

Release the tabs that attach the driver footwell cover to the vehicle, and then remove the footwell cover from the vehicle.

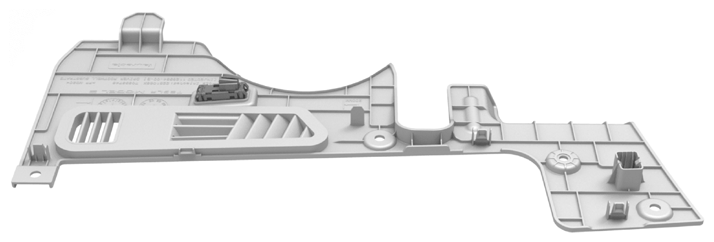

Figure 4. LHD

Courtesy of TESLA, INC.

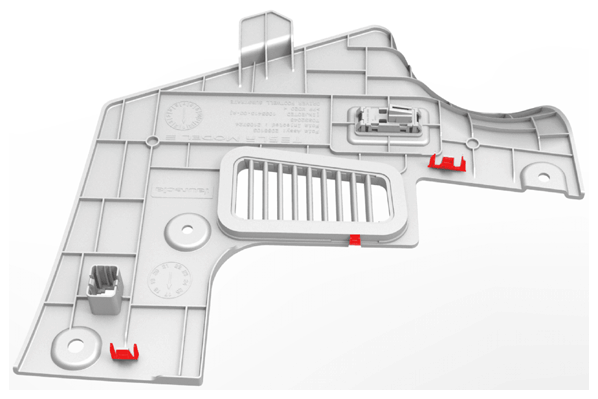

Figure 5. RHD

Courtesy of TESLA, INC.

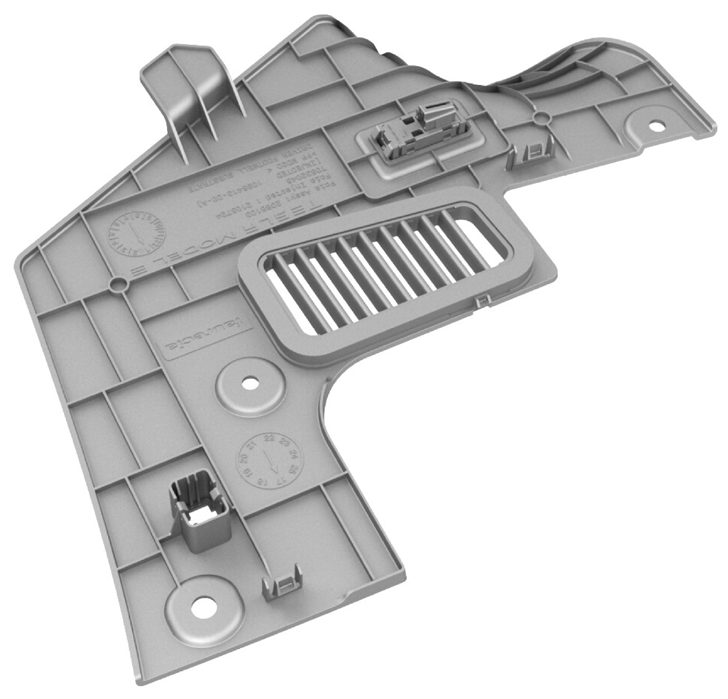

Figure 6. RHD

Courtesy of TESLA, INC.

Figure 7. RHD

Courtesy of TESLA, INC.
