Cover - Footwell - Driver - Remove And Replace: Install

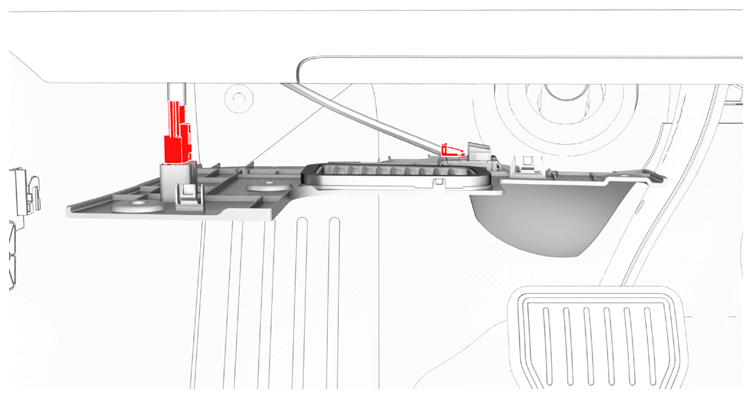

  1. Reconnect the diagnostic cable to the driver footwell cover, and then reconnect the electrical connector to the puddle light.

    Figure 8. LHD shown, RHD similar

    G14824008Courtesy of TESLA, INC.

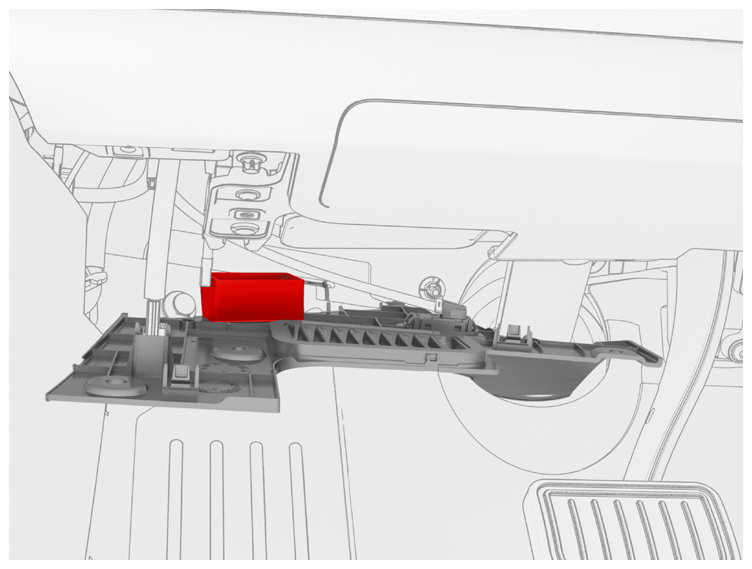

  2. APAC vehicles only:  Reconnect the OBD-II connector to the driver footwell cover.
    G14824009Courtesy of TESLA, INC.
  3. Position the footwell cover for installation by securing the front tabs to the driver knee air bag assembly, and then install the clips and the screw that attach the driver footwell cover to the vehicle.

    2.5 N.m

    Tip:

    Use of the following tool(s) is recommended:

    • Torx T20 socket
    • 1/4 in std ratchet
    • 1/4 in torque wrench (installation only)
    • 4 in extension

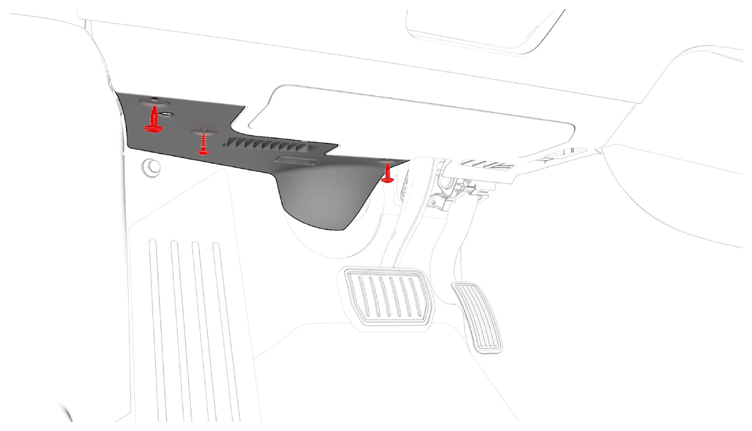

    Figure 9. RHD

    G14824010Courtesy of TESLA, INC.

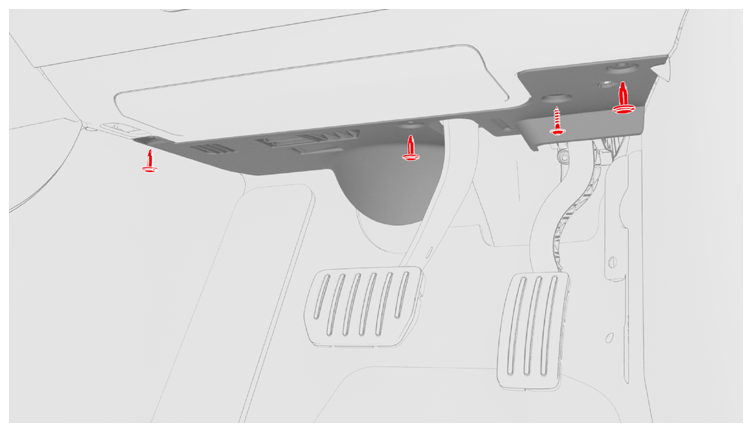

    Figure 10. RHD

    G14824011Courtesy of TESLA, INC.
