Tweeter - Front Door - LH - Remove And Replace: Remove

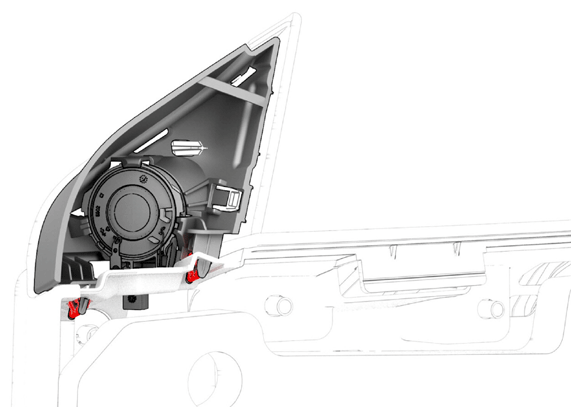

  1. Pull straight up to release the clips that attach the LH front door tweeter assembly to the door.
    CAUTION: Do not pull the tweeter assembly too far from the door panel, as the tweeter electrical connector is still attached.
    G14838906Courtesy of TESLA, INC.

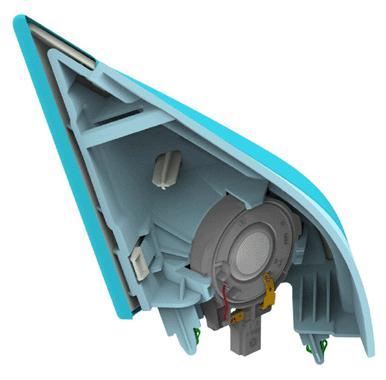

  2. Disconnect the electrical connector from the tweeter, and then remove the tweeter from the door.
    G14838907Courtesy of TESLA, INC.
