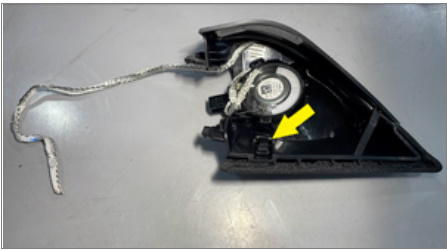

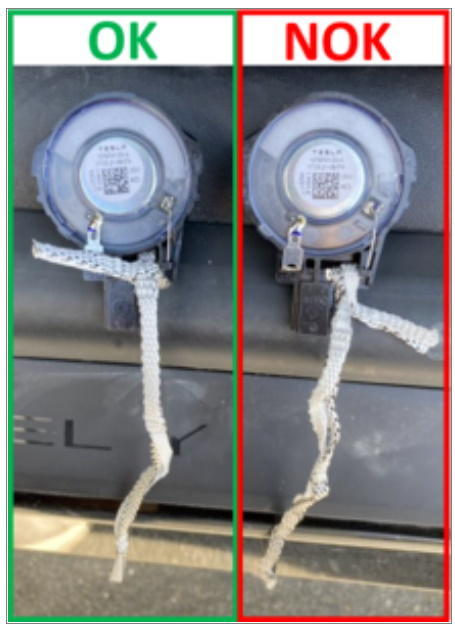

- Secure the tether to the LH front door tweeter with the same routing noted during removal.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

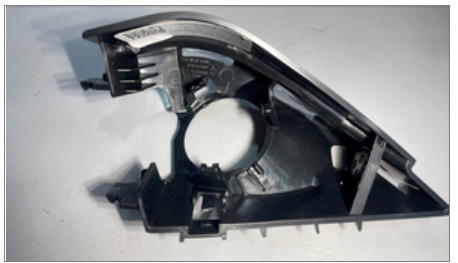

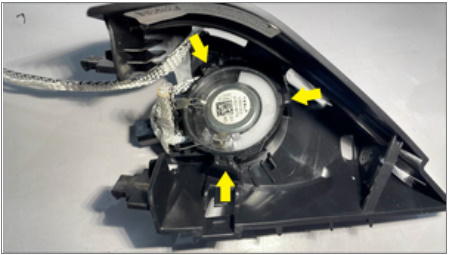

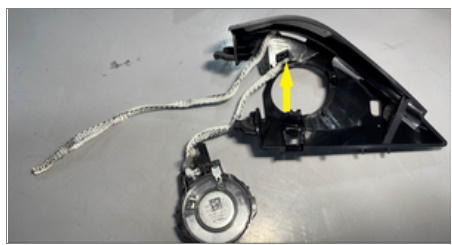

- Position the LH front door tweeter onto the tweeter carrier, route the tether into the carrier, and then secure the clips (x3) that attach the tweeter to the carrier.
NOTE:
Verify all clips are engaged.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

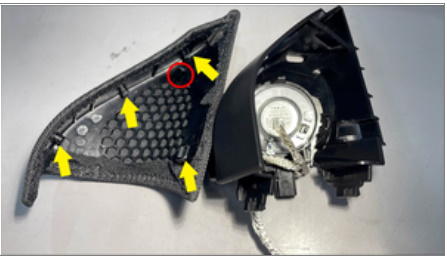

- Position the tweeter carrier assembly onto the tweeter cover, and then secure the clips (x4) that attach the cover assembly to the carrier.
NOTE:
Verify the assembly is fully seated.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Install the LH front door tweeter assembly. See Tweeter Assembly - Front Door - LH (with Tether) (Remove and Replace) .
