Speaker - Headliner - LH - Remove And Replace: Remove

  1. Remove the headliner from the vehicle. See Headliner - Front (Remove and Replace) .

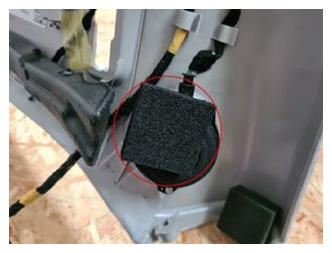

  2. Remove the soundproof foam from the LH front headliner speaker.
    G14838884Courtesy of TESLA, INC.

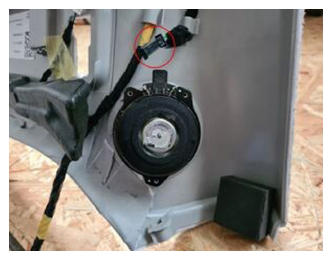

  3. Disconnect the LH front headliner speaker electrical connector.
    G14838885Courtesy of TESLA, INC.

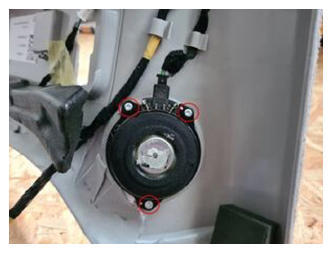

  4. Remove the screws that attach the LH front headliner speaker to the headliner assembly.

    0.5 N.m (4 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 driver
    G14838886Courtesy of TESLA, INC.

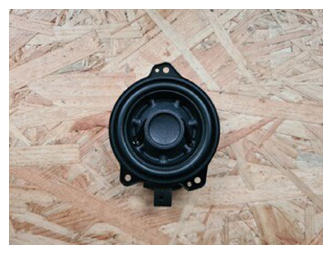

    G14838887Courtesy of TESLA, INC.
