Speaker - Headliner - LH - Remove And Replace: Install

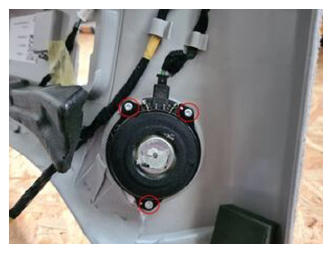

  1. Position the LH front headliner speaker onto the headliner assembly, and then install the screws that attach the speaker to the headliner assembly.

    0.5 N.m (4 in-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 driver
    G14838888Courtesy of TESLA, INC.

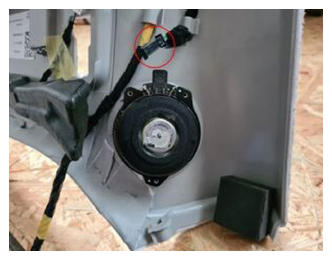

  2. Connect the LH front headliner speaker electrical connector.
    G14838889Courtesy of TESLA, INC.

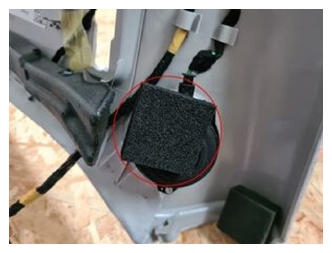

  3. Install the soundproof foam to the LH front headliner speaker.
    G14838890Courtesy of TESLA, INC.
  4. Install the headliner to the vehicle. See Headliner - Front (Remove and Replace) .
