Speaker - Front Door - LH - Remove And Replace: Remove
- Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace) .
- Disconnect the electrical connector from the front door speaker.

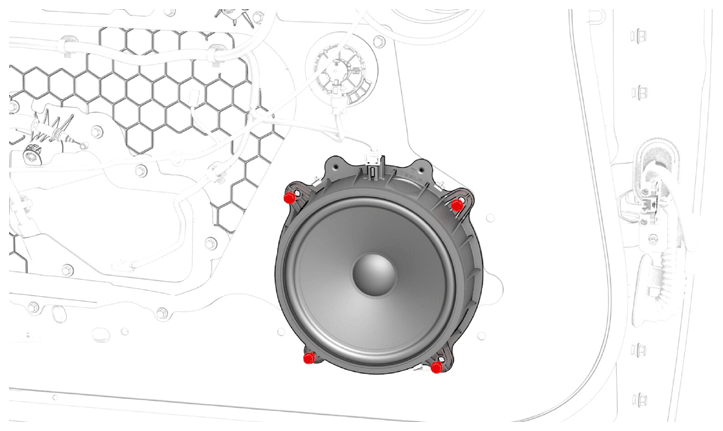

- Remove the screws that attach the front door speaker to the door, and then remove the speaker.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
- 1/4 in std ratchet
- 1/4 in torque wrench (installation only)
- 2 in extension
