Speaker - Dash - LH - Remove And Replace: Remove

  1. Remove the LH and RH instrument panel end caps. See End Cap - Instrument Panel - LH (Remove and Replace) .
  2. Remove the LH and RH middle A-pillar trims. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  3. Remove the LH and RH upper A-pillar trims. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  4. Remove the instrument panel speaker grille. See Grille - Speaker - Instrument Panel (Remove and Replace) .

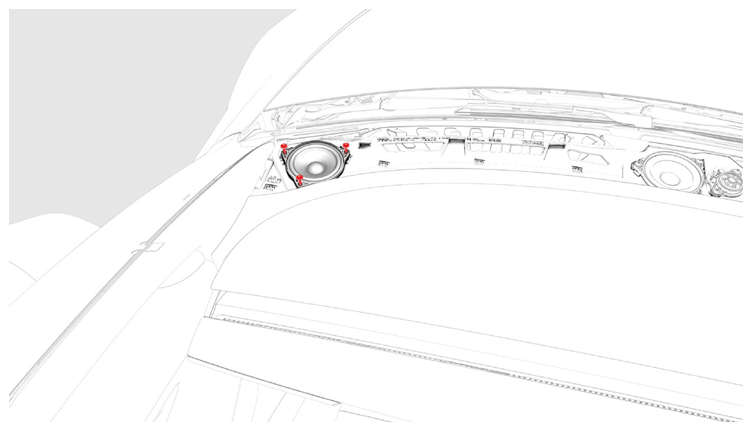

  5. Remove the screws that attach the LH dash speaker to the instrument panel, and then remove the speaker from the instrument panel.

    2.3 N.m (1.7 ft-lbs)

    G14838881Courtesy of TESLA, INC.

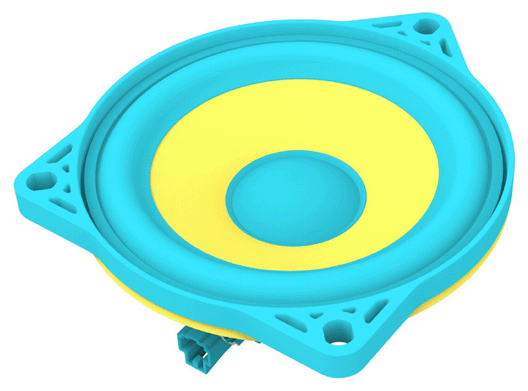

  6. Disconnect the electrical connector from the LH dash speaker, and then remove the speaker from the vehicle.
    G14838882Courtesy of TESLA, INC.
