Antenna - MIMO - Remove And Replace: Remove

  1. Open the LH front door and fully lower the LH front window.
  2. Remove the LH mid A-pillar trim. See Trim - A-Pillar - Middle - LH (Remove and Replace) .
  3. Remove the upper A-pillar trim. See Trim - A-Pillar - Upper - LH (Remove and Replace) .
  4. Remove the driver sun visor. See Sun Visor - LH (Remove and Replace) .
  5. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  6. Repeat step  1 through step  4 for the RH side of the vehicle.

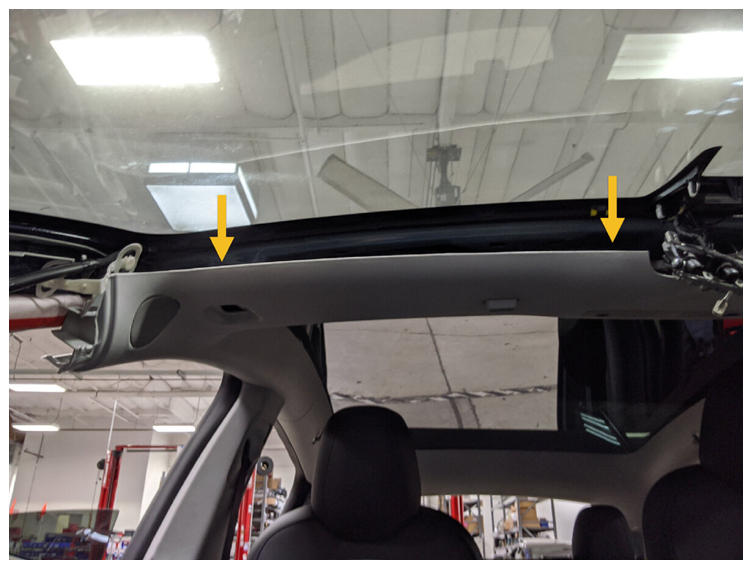

  7. With assistance, release the clips (x5) that attach the front edge of the front headliner.
    NOTE: Start from the front center of the front headliner.
    G14838955Courtesy of TESLA, INC.

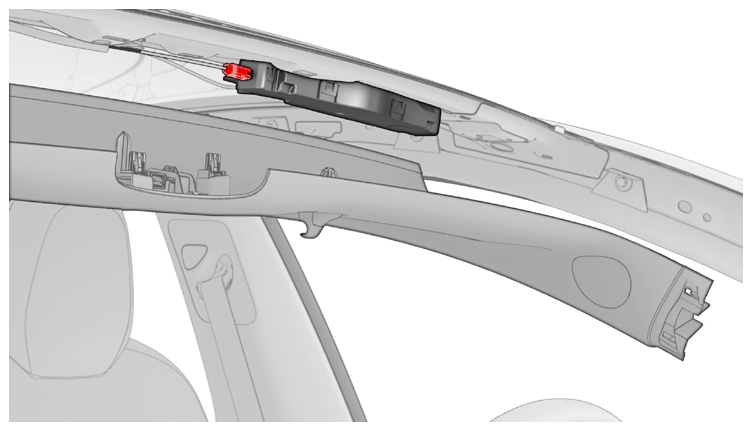

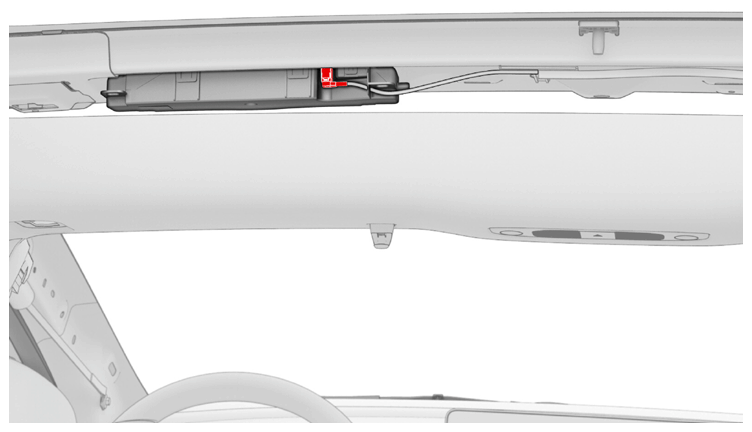

  8. Release the connector locks, and then disconnect the MIMO antenna electrical connectors.
    G14838956Courtesy of TESLA, INC.
    G14838957Courtesy of TESLA, INC.

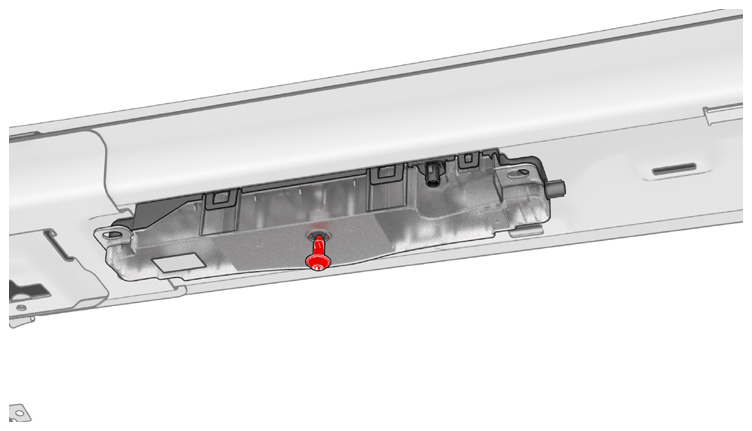

  9. Remove the bolt that attaches the MIMO antenna to the body.

    10 N.m (7.4 ft-lbs)

    NOTE: The bolt is captive in the antenna housing and cannot be removed from the housing.

    Tip: Use of the following tool(s) is recommended:

    • Torx Plus IP30 socket
    G14838959Courtesy of TESLA, INC.

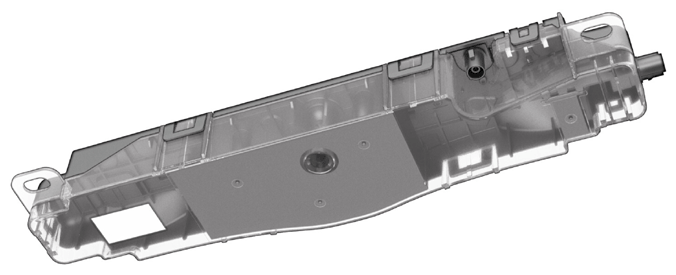

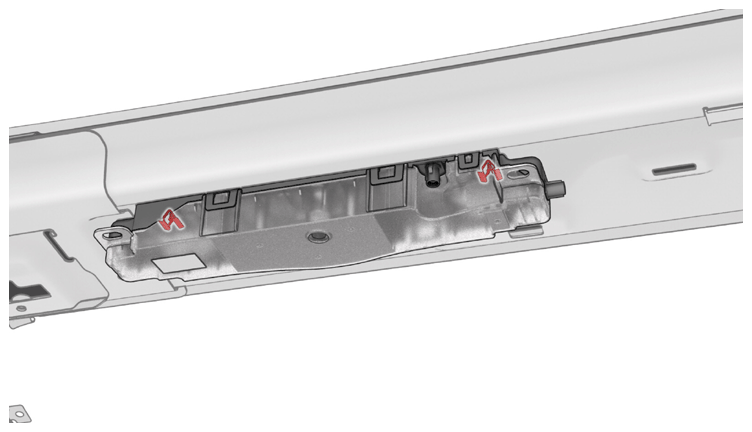

  10. Release the clips that attach the MIMO antenna to the body, and then remove the it from the vehicle.
