Antenna - GPS/GNSS - Remove And Replace: Remove

  1. Remove the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace) .
  2. Remove the rear view mirror. See Mirror - Rear View (Remove and Replace) .
  3. Remove the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
  4. Remove the triple camera hood. See Hood - Triple Camera (Remove and Replace) .
  5. Remove the forward facing camera. See Camera - Triple - Forward Facing (Remove and Replace) .

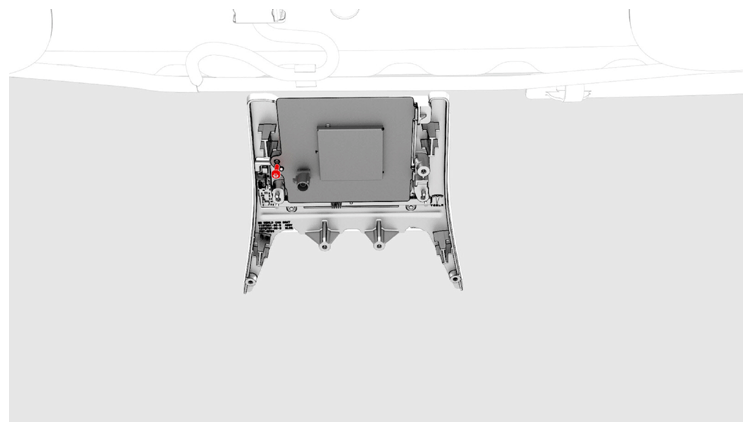

  6. Remove the screw that attaches the GPS/GNSS antenna to the bracket, slide the antenna to the LH side to release the tabs (x2) from the bracket, and then remove the antenna from the vehicle.

    1 N.m (.7 ft-lbs)

    Tip: Use of the following tool(s) is recommended:

    • Torx T10 bit
    G14838951Courtesy of TESLA, INC.
