Antenna - GPS/GNSS - Remove And Replace: Install

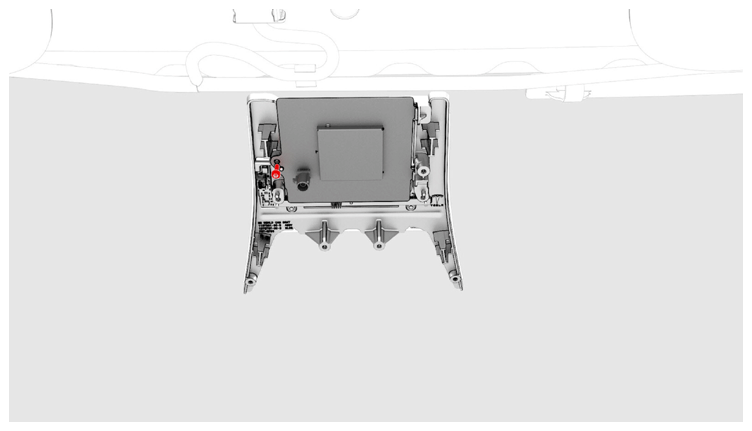

- Slide the antenna to the RH side to secure the tabs (x2), and then install the screw that attaches the GPS/GNSS antenna to the bracket.
1 N.m (.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- Torx T10 bit
- Install the forward facing camera. See Camera - Triple - Forward Facing (Remove and Replace) .
- Install the triple camera hood. See Hood - Triple Camera (Remove and Replace) .
- Install the upper quad camera cover. See Quad Camera Cover - Upper (Remove and Replace) .
- Install the rear view mirror. See Mirror - Rear View (Remove and Replace) .
- Install the lower quad camera cover. See Quad Camera Cover - Lower (Remove and Replace) .
- Adjust the forward facing camera. See Camera - Forward Facing (Pitch Verification) .
