Tuner - FM/HD - Remove And Replace: Install

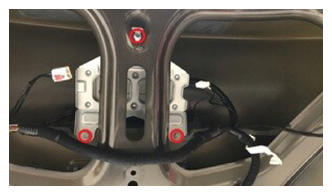

- Position the radio tuner to the liftgate assembly, and then install the bolts (x3) that attach the tuner to the liftgate.
8 N.m (5.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm deep socket
- Flex head ratchet/flex head torque wrench

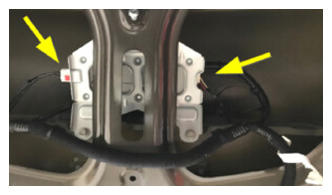

- Connect the radio tuner electrical connectors (x2).
- Install the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace) .
- Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .
- Connect 12V/LV power. See 12V/LV Power (Disconnect and Connect) .
- If the vehicle is equipped with HEPA filters, install the HEPA filter assembly. See Assembly - Filter - HEPA - Remove And Install .
- Install the rear underhood apron. See Underhood Apron - Rear - Remove And Replace .
- Close the liftgate.
- Raise the LH front window and close the LH front door.
