Antenna Amplifier - FM2 - Remove And Replace: Remove

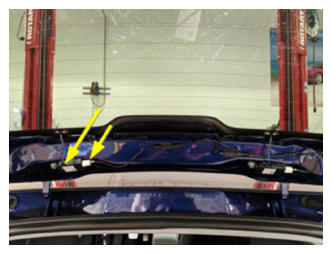

- Remove the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .

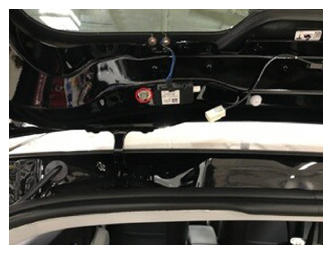

- Disconnect the FM2 antenna amplifier electrical connectors.

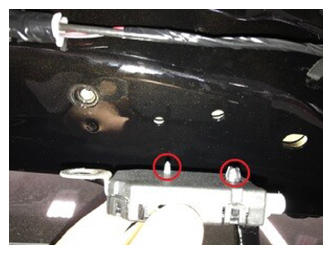

- Remove the bolt that attaches the FM2 antenna amplifier to the liftgate, and then remove the amplifier from the assembly.
4 N.m (2.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench
