Antenna Amplifier - FM2 - Remove And Replace: Install

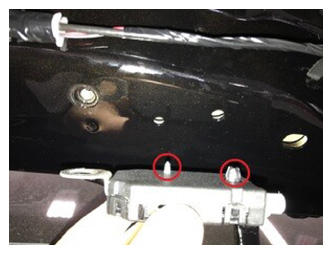

Position the FM2 antenna amplifier onto the liftgate, and then install the bolt.
4 N.m (2.9 ft-lbs)

Tip: Use of the following tool(s) is recommended:
- 10 mm socket
- Flex head ratchet/flex head torque wrench
Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

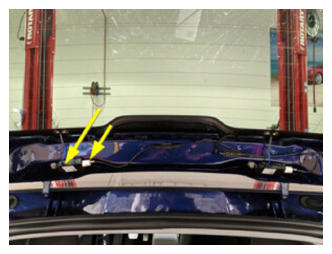

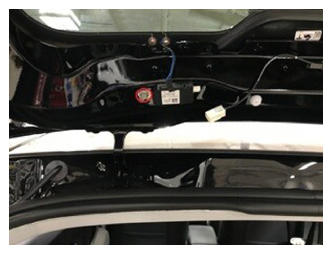

Connect the FM2 antenna amplifier electrical connectors.

Courtesy of TESLA, INC.
Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .
