Hose - Washer - Reservoir (LHD) - Remove And Replace: Remove

  1. Open the LH front door and fully lower the LH front window.
  2. Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .
  3. Remove the LH and RH wiper arms. See WIPER ARMS (REMOVE AND REPLACE) .
  4. Remove the cowl screen panel. See PANEL - COWL SCREEN (REMOVE AND REPLACE) .
  5. Remove the windshield washer reservoir filler neck. See FILLER NECK - RESERVOIR - WINDSHIELD WASHER (REMOVE AND REPLACE) .
  6. Remove the wiper motor. See WIPER MODULE (REMOVE AND REPLACE) .

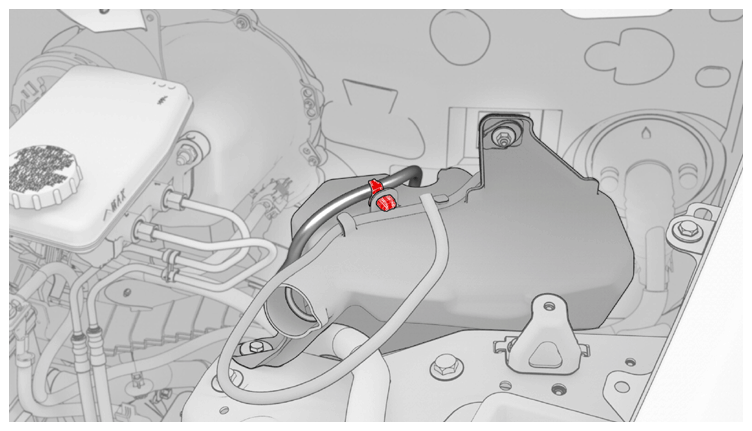

  7. Release the clip that attaches the electrical harness to the windshield washer reservoir.
    G14834103Courtesy of TESLA, INC.

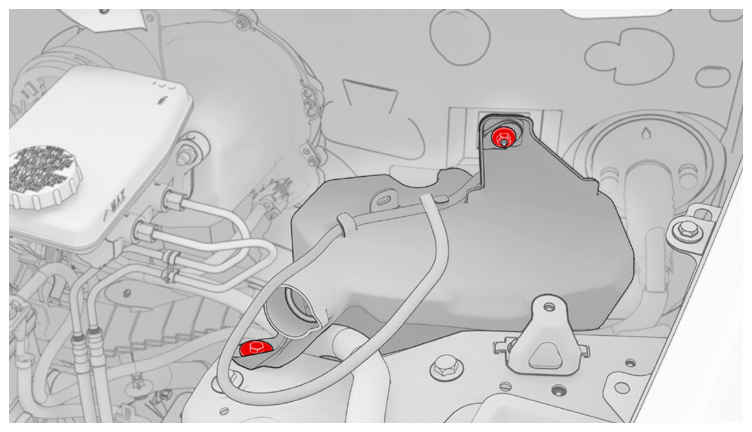

  8. Remove the bolt and nut that attach the water tank to the vehicle.

    Tip: Use of the following tool(s) is recommended:

    • 10 mm socket
    • Flex head ratchet/flex head torque wrench
    • 6 in extension
    G14834104Courtesy of TESLA, INC.

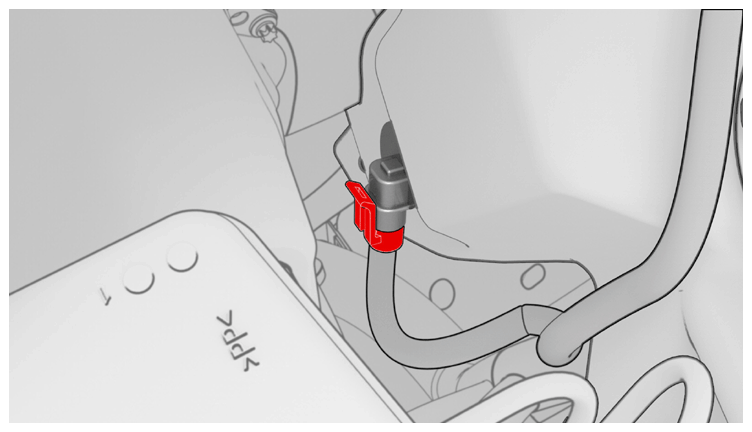

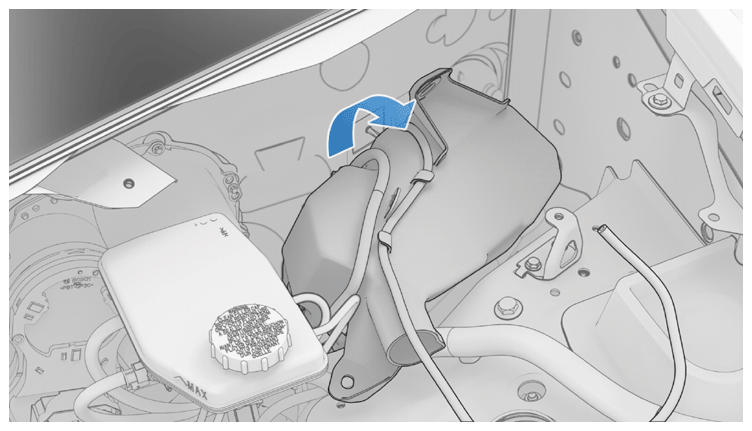

  9. Disconnect the washer tank level sensor.
    NOTE: Move the washer tank forward, and then up to access the level sensor connector.
    G14834105Courtesy of TESLA, INC.
    G14834106Courtesy of TESLA, INC.

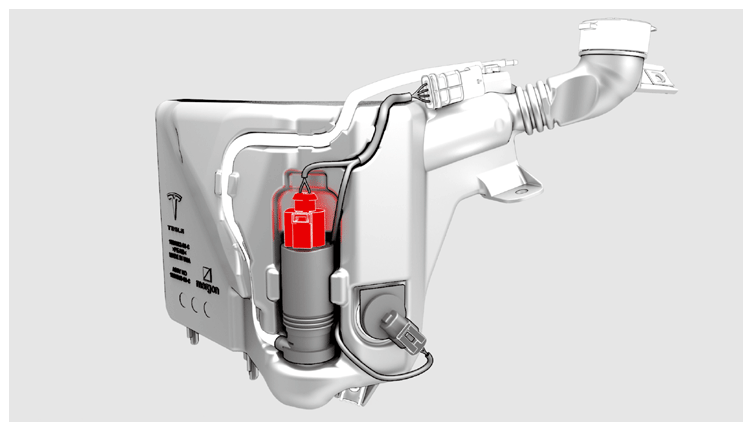

  10. Disconnect the electrical harness from the windshield washer pump connector.
    NOTE: Lift the washer tank up, and then rotate it counterclockwise to access the washer pump at the rear of the tank.
    G14834107Courtesy of TESLA, INC.
  11. Remove the windshield washer reservoir from the vehicle, and then recover any fluid from the reservoir.

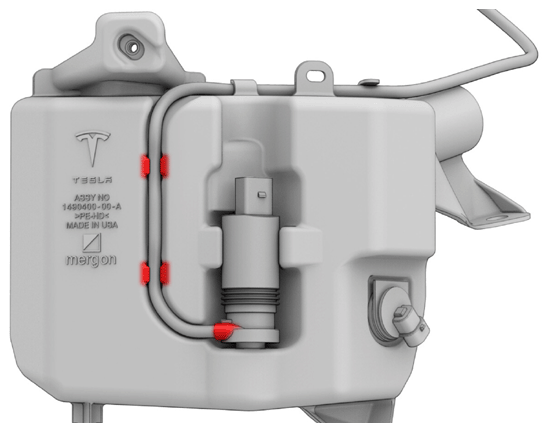

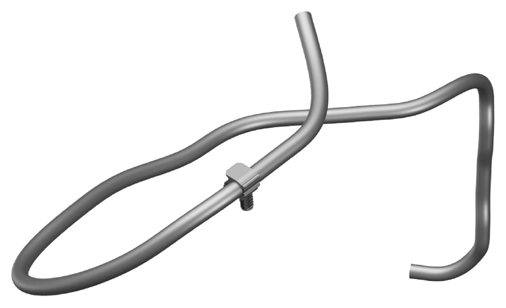

  12. Remove the washer hose from the windshield washer reservoir and washer pump.
    NOTE: Rotate the washer pump to remove the washer hose.
    G14834108Courtesy of TESLA, INC.
    G14834109Courtesy of TESLA, INC.
