Light - Fog/Reverse - Rear - LH - Remove And Replace: Remove

  1. Remove the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace) .

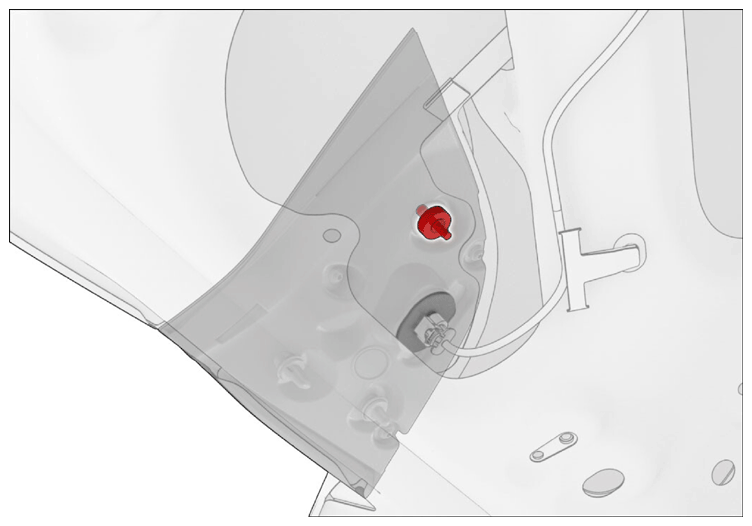

  2. Remove the nut that attaches the LH rear fog/reverse light to the liftgate.
    NOTE: Use of the following tool(s) is recommended:
    • 8 mm deep socket
    • 4 in extension
    G14833965Courtesy of TESLA, INC.

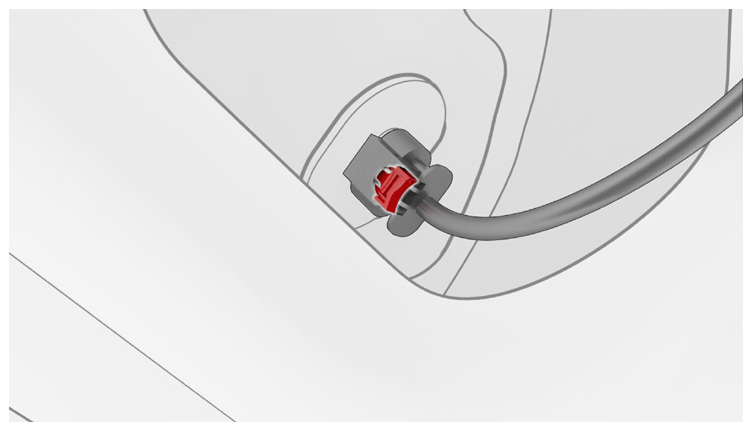

  3. Disconnect the electrical wiring harness connector from the LH rear fog/reverse light.
    NOTE: Lift the red locking tab to unlatch the connector, and then release the connector.
    G14833966Courtesy of TESLA, INC.

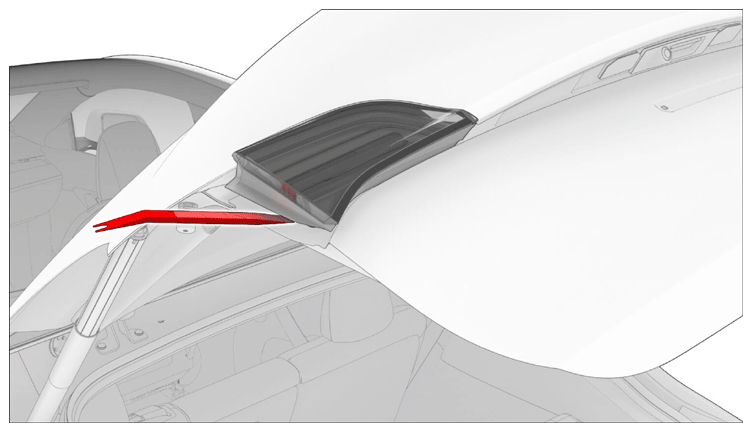

  4. Use a plastic trim tool on the outboard side of the light to release the anchors on the light from the grommets on the liftgate.
    G14833967Courtesy of TESLA, INC.
  5. Remove the LH rear fog/reverse light from the vehicle.
