Light - Fog / Reverse - Rear - LH - Remove and Install: Install

Replace the connector gasket and lower stud gasket on LH liftgate tail lamp

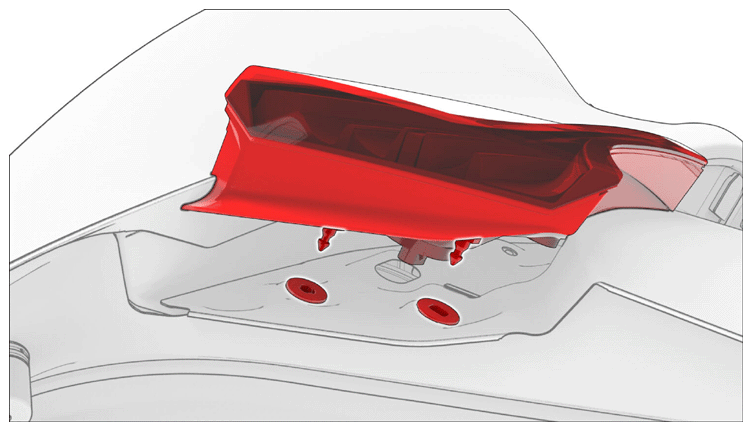

Install the LH rear fog/reverse light so that the anchors are inserted into the grommets on the liftgate. Make sure the LH rear fog/reverse light is flush with the liftgate.

Courtesy of TESLA, INC.

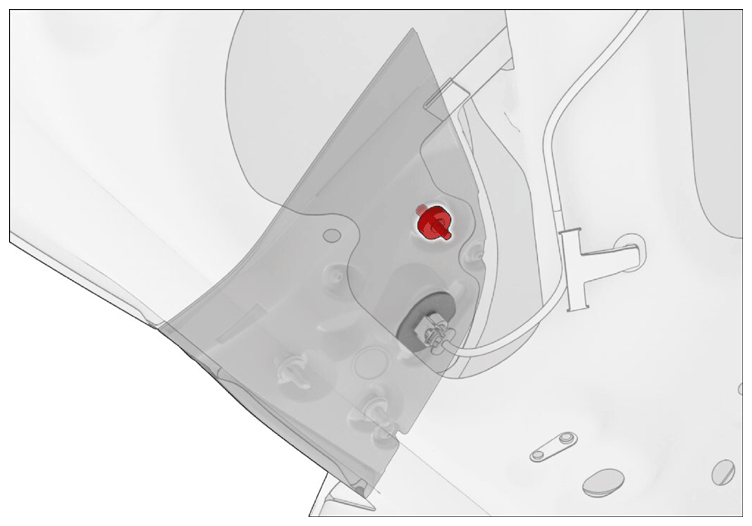

Install the nut that attaches the LH rear fog/reverse light to the liftgate.
3.5 N.m (2.6 ft-lbs)
NOTE:
Use of the following tool(s) is recommended:
- 8 mm deep socket
- 4 in extension
Courtesy of TESLA, INC.

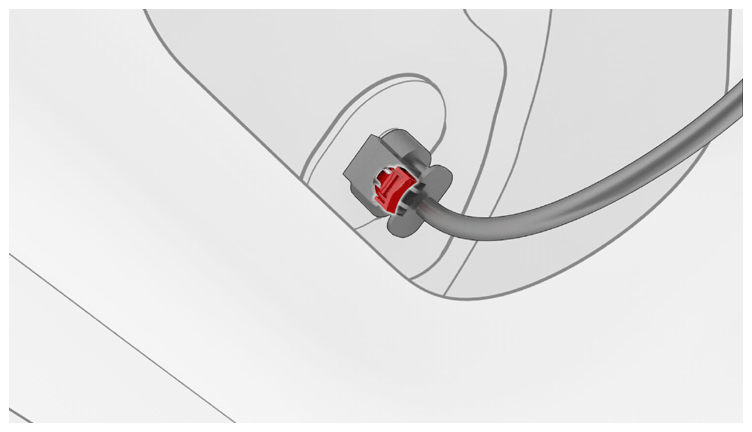

Connect the electrical wiring harness connector to the LH rear fog/reverse light.
NOTE: Make sure the red locking tab is pressed down and the connector is fully connected.

Courtesy of TESLA, INC.
Install the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace) .
Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .
Close the liftgate.
