Seal - Liftgate - Side - LH - Remove and Replace: Remove

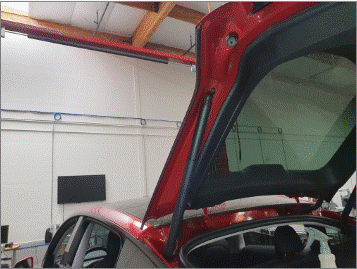

  1. Open the liftgate.

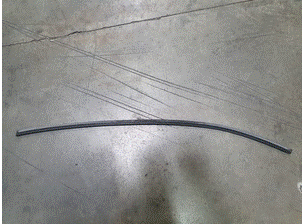

  2. Remove the LH side liftgate seal from the liftgate.
    G00645018Courtesy of TESLA, INC.
    G00645019Courtesy of TESLA, INC.

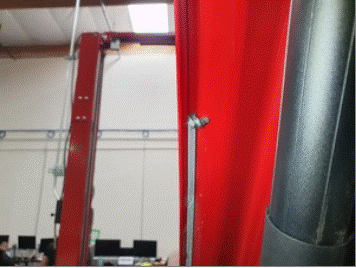

  3. Remove remaining adhesive and clean the surface with IPA wipes.
    NOTE:

    Allow 1 minute of dry time.

    G00645020Courtesy of TESLA, INC.
