Latch - Liftgate - Remove And Replace: Install

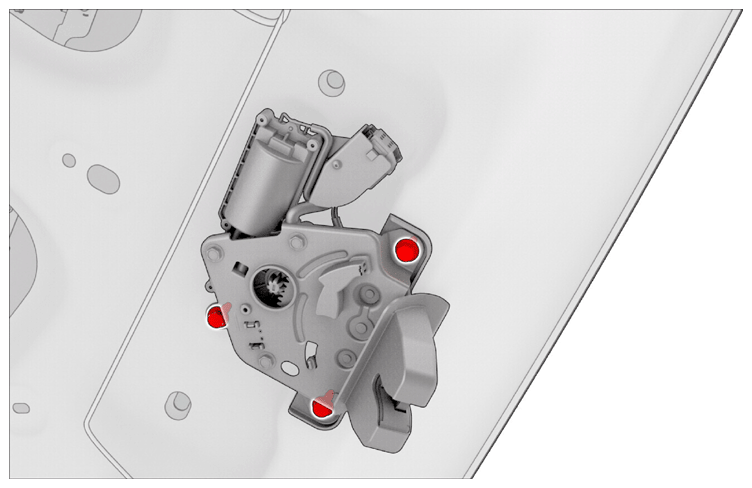

  1. Install the bolts that attach the latch to the liftgate lid.

    10 N.m (7.4 lbs-ft)

    NOTE: The latch has tabs on the backside. Position the latch so that the tabs enter the locating holes in the liftgate.
    NOTE: Use of the following tool(s) is recommended:
    G14820974Courtesy of TESLA, INC.

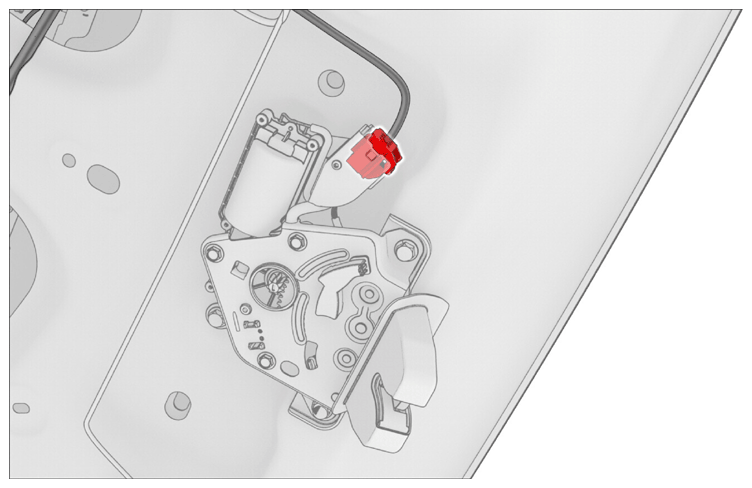

  2. Connect the electrical connector to the latch.
    G14820975Courtesy of TESLA, INC.
  3. Install the liftgate lower trim. See Trim - Liftgate - Lower (Remove and Replace) .
  4. Install the liftgate upper trim. See Trim - Upper - Liftgate (Remove and Replace) .
  5. Close the liftgate.
