Hinge - Door - Rear - Lower - LH - Remove And Replace: Remove

Open the LH front door and fully lower the LH front window.

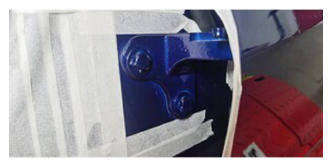

Apply masking tape to the area surrounding the LH lower rear door hinge on the body and door to aid in alignment during installation.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

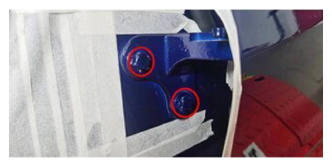

Remove the bolts that attach the LH lower rear door hinge to the body.
24 N.m (17.7 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 13 mm swivel ball socket
Courtesy of TESLA, INC.

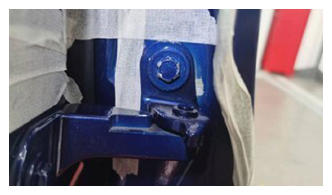

Remove the bolt or nut that attaches the LH lower rear door hinge to the door.
49 N.m (36.1 lbs-ft)

49 N.m (36.1 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- 13 mm deep socket
- 6 in extension
NOTE:
Fixation by bolt

Courtesy of TESLA, INC.

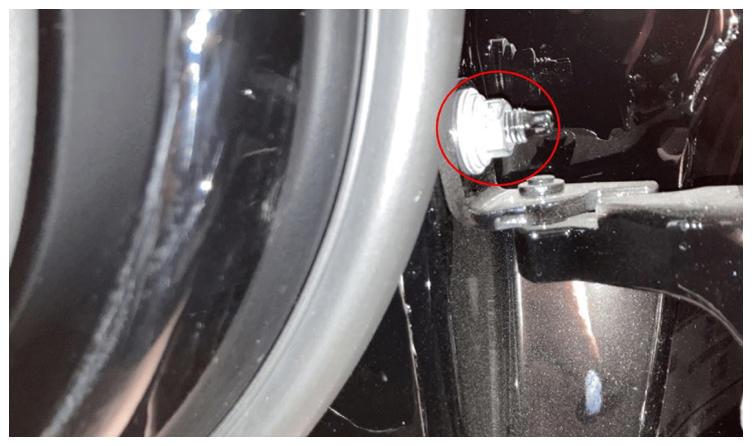

NOTE:
Fixation by nut

Courtesy of TESLA, INC.

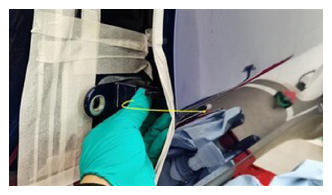

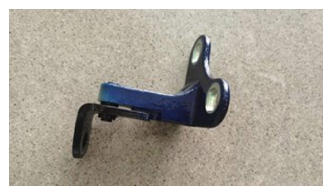

Carefully remove the LH lower rear door hinge from the vehicle.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
