Camera - Rear Facing (HW3) - Remove And Replace: Install

  1. Feed the rear facing camera electrical connector and grommet seal through the liftgate opening to position it for installation.

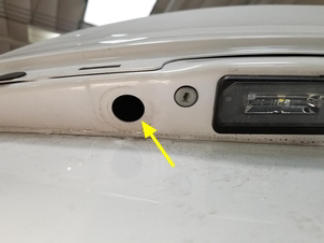

    G15437807Courtesy of TESLA, INC.

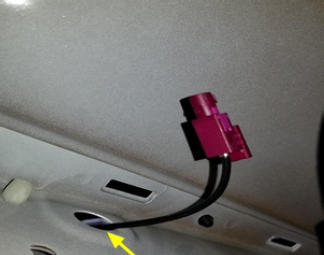

    G15437808Courtesy of TESLA, INC.

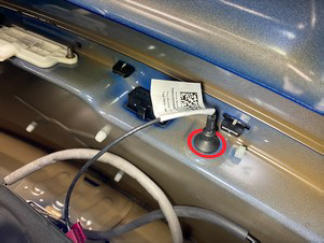

  2. Install the rear facing camera grommet to the liftgate.
    G15437809Courtesy of TESLA, INC.
  3. Connect the rear facing camera electrical connector to the RH liftgate harness.

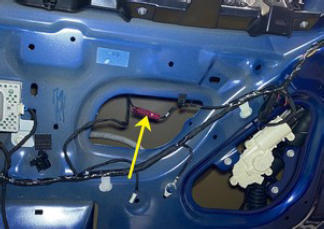

    G15437810Courtesy of TESLA, INC.
  4. Install the liftgate applique bracket. See Bracket - Applique - Liftgate (Remove and Replace) .
  5. Install the liftgate applique. See Applique - Liftgate (Remove and Replace) .
  6. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace) .
